Arduino Project Hub: 10 Inspiring Projects to Try Today

Introduction

Welcome to your ultimate Arduino project hub! If you're an engineering student or DIY enthusiast in India, you're in the right place. Arduino has revolutionized the world of electronics, making it accessible to everyone from beginners to advanced users. With its open-source nature and vast community support, Arduino projects can be both educational and practical, helping you understand real-world electronics applications.

In this comprehensive guide, we'll explore 10 inspiring Arduino projects that you can build today. These projects are perfect for Indian engineering students looking to enhance their practical skills, complete their curriculum requirements, or simply explore their passion for electronics. Whether you're working on a microcontroller lab project or building something for your final year, these Arduino projects will give you hands-on experience with sensors, actuators, and embedded systems.

The best part? All components mentioned are readily available at your local electronics market or through online platforms like Elektor, Robu, or directly from our store at TecnoMate. We'll provide you with exact specifications, Indian pricing, and code snippets to get you started immediately.

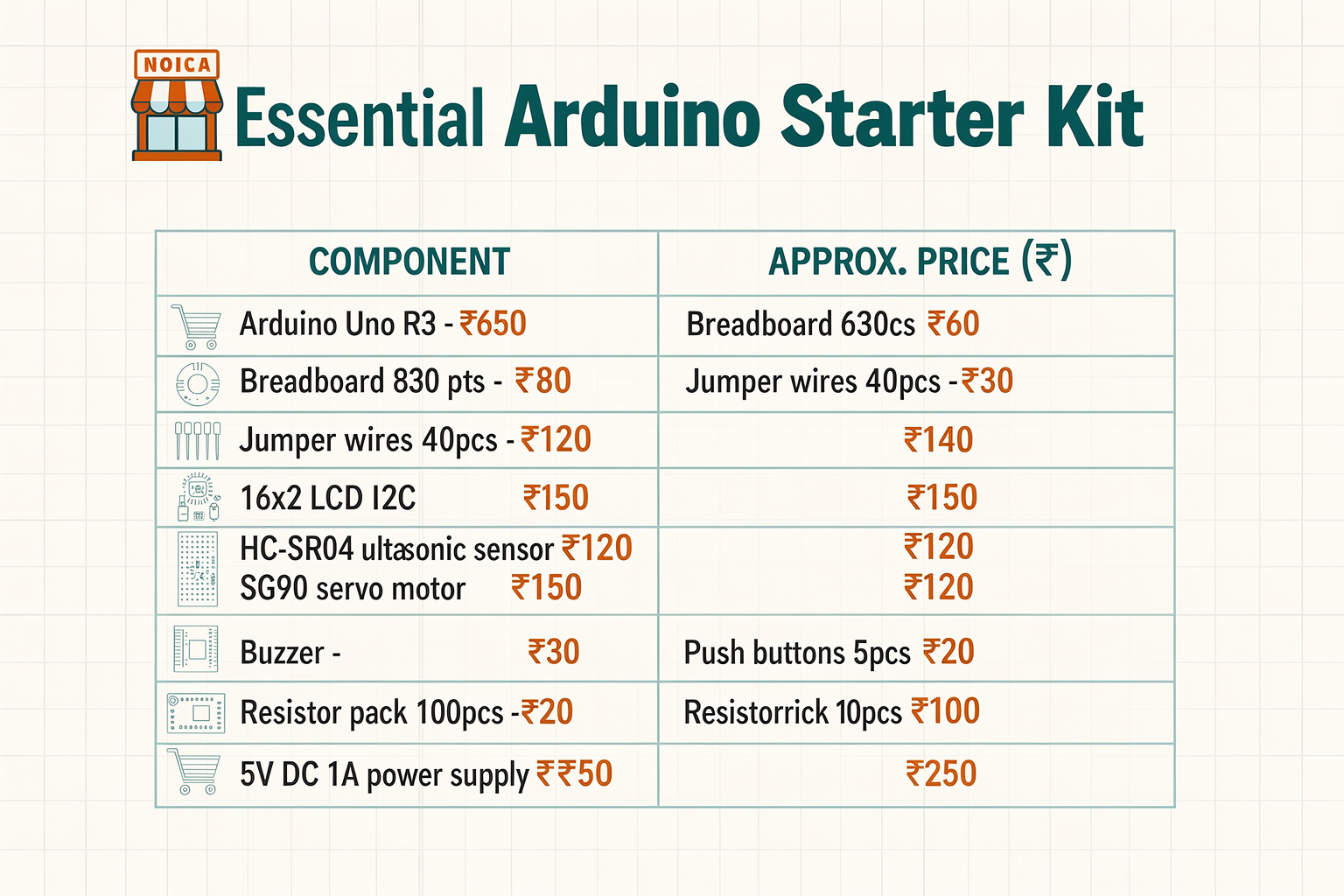

Prerequisites

Before diving into these exciting projects, let's ensure you have all the necessary tools and components. Having the right setup will save you time and prevent frustration during your Arduino journey.

Essential Software

Make sure you have the following software installed on your computer:

• Arduino IDE (latest version)
• Fritzing (for circuit diagrams)
• Proteus (optional for simulation)

Getting Started: Your First Arduino Project

Let's begin with a simple yet practical project that introduces you to the fundamentals of Arduino programming. This "Smart Home Temperature Monitor" project will teach you about sensors, LCD displays, and basic data logging.

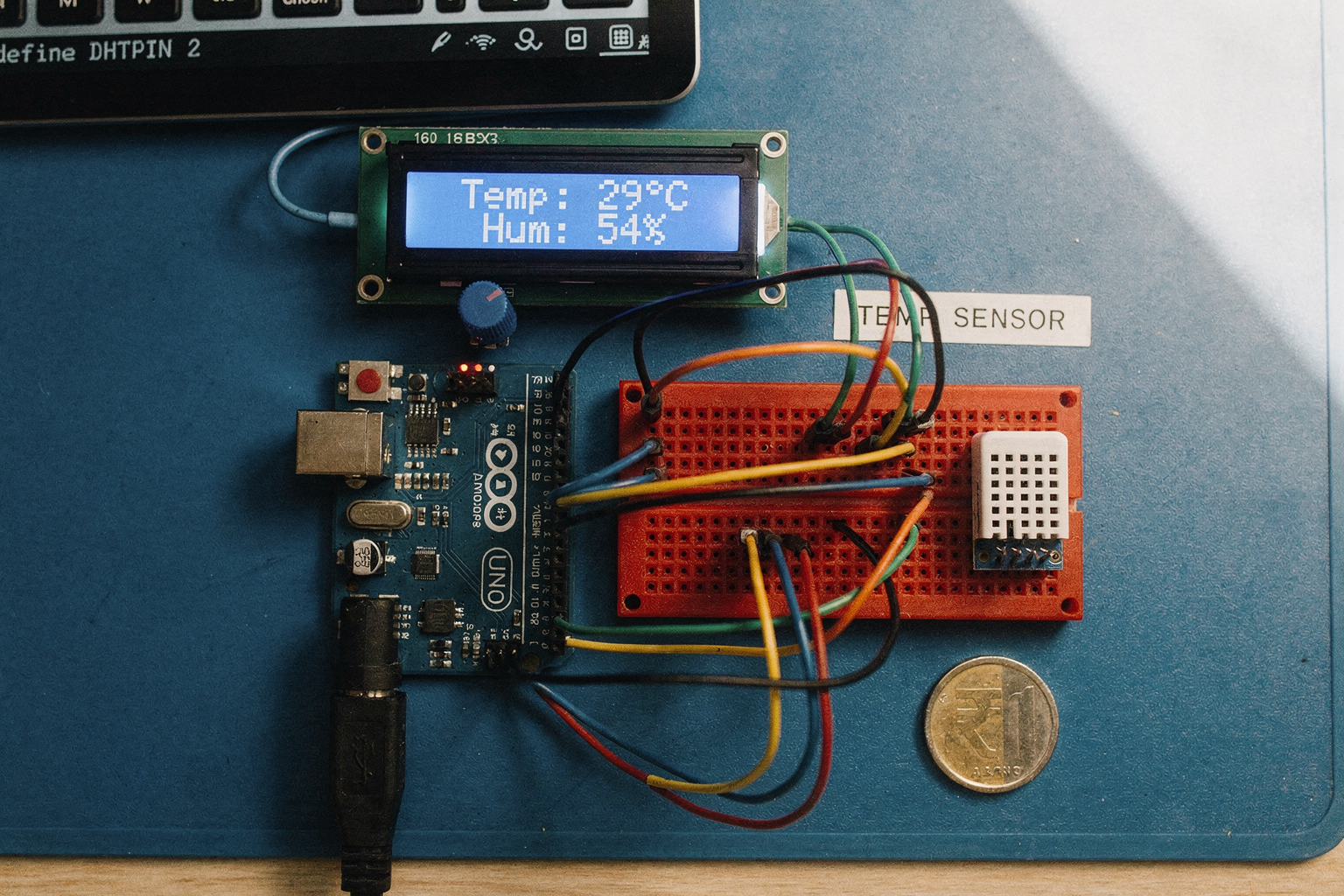

Project 1: Smart Home Temperature Monitor

Objective: Create a temperature monitoring system with an LCD display that shows current temperature and humidity.

Components Needed:

• Arduino Uno
• DHT11 Temperature & Humidity Sensor
• 16x2 LCD Display
• Potentiometer (10kΩ)
• Breadboard and jumper wires

Circuit Setup:

1. Connect VCC pin of DHT11 to 5V
2. Connect GND pin to GND
3. Connect DATA pin to Digital Pin 2
4. Connect LCD VCC to 5V, GND to GND
5. Connect LCD SDA to A4, SCL to A5 (for I2C)
6. Connect potentiometer between LCD V0 and GND

Code Implementation:

#include <DHT.h>
#include <LiquidCrystal_I2C.h>

#define DHTPIN 2     // Digital pin connected to DHT sensor
#define DHTTYPE DHT11 // DHT 11

LiquidCrystal_I2C lcd(0x27, 16, 2); // Set the LCD address to 0x27
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  lcd.init();
  lcd.backlight();
  dht.begin();
  Serial.begin(9600);
}

void loop() {
  delay(2000);

  float h = dht.readHumidity();
  float t = dht.readTemperature();

  if (isnan(h) || isnan(t)) {
    lcd.setCursor(0, 0);
    lcd.print("Sensor Error!");
    return;
  }

  lcd.setCursor(0, 0);
  lcd.print("Temp: ");
  lcd.print(t);
  lcd.print((char)223); // Degree symbol
  lcd.print("C");

  lcd.setCursor(0, 1);
  lcd.print("Humidity: ");
  lcd.print(h);
  lcd.print("%");

  Serial.print("Temperature: ");
  Serial.print(t);
  Serial.print("°C, Humidity: ");
  Serial.print(h);
  Serial.println("%");
}

This project is incredibly useful for understanding HVAC systems in Indian homes, where temperature and humidity control is crucial year-round due to the diverse climate across the country.

10 Inspiring Arduino Projects to Try Today

Project 2: Automated Plant Watering System

Perfect for: Agricultural engineering students, environmental projects

Cost: ₹850

This project helps conserve water, a critical concern in many parts of India. It automates plant watering based on soil moisture levels.

Code Snippet:

const int soilMoisturePin = A0;
const int waterPumpPin = 7;

void setup() {
  pinMode(waterPumpPin, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  int moisture = analogRead(soilMoisturePin);

  if (moisture < 300) { // Threshold for dry soil
    digitalWrite(waterPumpPin, HIGH);
    Serial.println("Watering plants...");
    delay(3000);
    digitalWrite(waterPumpPin, LOW);
    Serial.println("Watering complete.");
  }

  delay(2000);
}

Project 3: Smart Door Lock System

Perfect for: Security engineering, IoT enthusiasts

Cost: ₹1,200

With rising security concerns in urban Indian households, this project introduces you to biometric security and remote access control.

Components:

• Arduino Uno
• Fingerprint sensor (GT-511C3)
• RFID reader module (RC522)
• Solenoid lock
• 9V battery backup

Project 4: Solar-Powered Street Light

Perfect for: Renewable energy projects, civil engineering students

Cost: ₹1,500

India's push towards solar energy makes this project both relevant and educational. It learns the concept of sustainable energy solutions.

Key Components:

• Solar panel (10W)
• Arduino Uno
• Light sensor (LDR)
• LED strip (5V, 10 meters)
• Li-ion battery (3.7V, 2000mAh)

Project 5: Voice-Controlled Home Automation

Perfect for: AI/ML enthusiasts, IoT developers

Cost: ₹1,100

Voice control is becoming increasingly popular in Indian households, and this project teaches you the basics of voice recognition using Arduino.

Required Parts:

• Arduino Uno
• HC-05 Bluetooth module
• SR04 ultrasonic sensor
• Multiple relays

Project 6: Traffic Light Controller for Small Intersections

Perfect for: Civil engineering, traffic management students

Cost: ₹750

This project mimics the traffic light systems found in Indian cities, teaching you about timing, coordination, and safety protocols.

Code Example:

const int redLED = 8;
const int yellowLED
