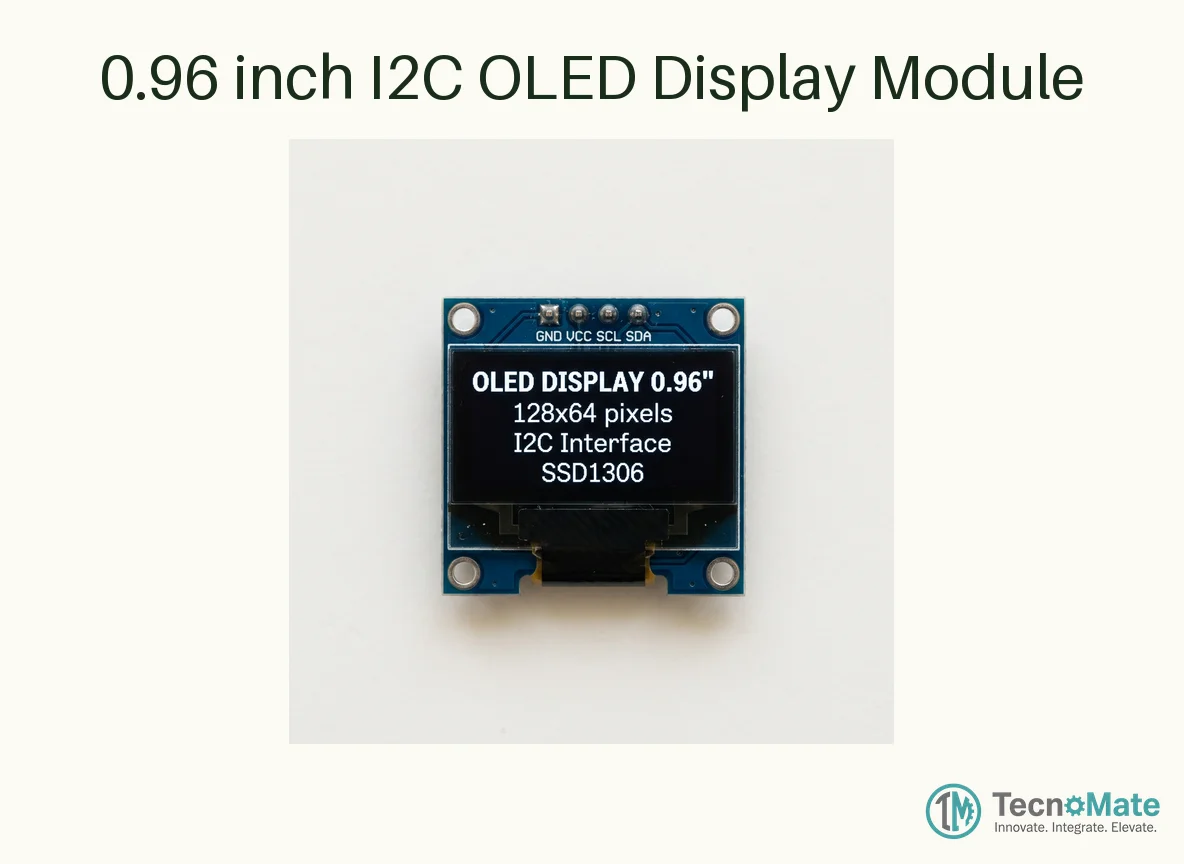

0.96 inch I2C OLED Display Module

Add a crisp visual interface to your electronics project with this 0.96 inch I2C OLED Display Module. The module provides a 128×64 pixel monochrome graphic display in a very small footprint, making it one of the most popular displays for Arduino and embedded development in India. Unlike LCD modules, OLED pixels are self-emissive, so the display does not require a backlight and can show bright text and graphics with excellent contrast. This 4-pin OLED module communicates over the I2C/IIC bus, using only VCC, GND, SCL and SDA connections. That keeps wiring simple and saves GPIO pins compared with parallel LCDs or SPI displays. The display is commonly driven by the SSD1306 controller IC, which is widely supported by Arduino IDE libraries such as Adafruit SSD1306 and U8g2, as well as ESP32, ESP8266, STM32, Raspberry Pi Pico and many other platforms. It can show characters, numbers, logos, bitmaps, progress bars, menu screens and small graphs. The 0.96 inch size is especially useful for portable meters, battery-powered devices, sensor nodes, mini weather stations, robots, 3D printer accessories, smart home controllers and test equipment. Typical projects include DHT temperature and humidity displays, voltage/current monitors, Wi-Fi status screens, GPS data readouts, RFID access systems and compact user interfaces. Pin notes: connect GND to ground, VCC to the module supply, SCL to the I2C clock pin of your controller and SDA to the I2C data pin. The common I2C address for SSD1306 128×64 modules is 0x3C, though some batches may use 0x3D depending on configuration. Package includes 1 × 0.96 inch 128×64 I2C OLED display module.
