KBL406 Bridge Rectifier 4A 600V – Single Phase Full Wave KBL Package
The KBL406 is a robust 4 Amp, 600 Volt single-phase bridge rectifier diode housed in the industry-standard KBL (SIP-4) through-hole package. It is designed to convert AC (alternating current) to pulsating DC (direct current) with full-wave rectification — a fundamental building block in countless power supply circuits, battery chargers, motor drivers, and industrial control systems. Constructed with a silicon junction and molded in a flame-retardant plastic encapsulation, the KBL406 offers excellent thermal performance and electrical isolation. It features a maximum repetitive peak reverse voltage (VRRM) of 600V, a forward voltage drop of just 1.1V at 4A, and an impressive forward surge current capability of 150A — making it highly tolerant of inrush currents during power-on. Each KBL406 module integrates four rectifier diodes internally in a bridge configuration, with four clearly marked pins (AC1, AC2, V+, V−) for easy PCB mounting. The compact KBL footprint saves board space while delivering reliable performance over a wide operating temperature range of -55°C to +150°C. In the Indian DIY and repair market, the KBL406 is a go-to replacement for failed bridge rectifiers in SMPS units, UPS systems, AC-to-DC adapters, and home appliance power boards. Hobbyists and engineering students regularly stock this part for building regulated power supplies, battery eliminators, and variable DC bench supplies. With its 600V blocking voltage, it safely handles 230V AC mains rectification with ample headroom. Whether you are repairing a CFL/LED driver, building a lab power supply, or prototyping a motor speed controller, the KBL406 offers reliable, cost-effective full-wave rectification. Rated at 4A continuous output with proper heatsinking, this rectifier delivers consistent DC power for moderate-load applications across educational, repair, and industrial settings.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹26.00
Inclusive of all taxes
Category
Passive Components
Quality
100% Genuine
About KBL406 Bridge Rectifier 4A 600V – Single Phase Full Wave KBL Package
Technical Specifications
| RoHS | Compliant |
|---|---|
| Type | Single-Phase Bridge Rectifier |
| Package | KBL (SIP-4, Through Hole) |
| Material | Silicon Junction / Plastic Molded |
| Mounting | Through Hole |
| Terminals | 4 (AC1, AC2, V+, V-) |
| Part Number | KBL406 |
| Dielectric Strength | 1500 V RMS |
| Forward Current (Io) | 4 A |
| Forward Voltage Drop (VF) | 1.1 V (typical at 4A) |
| Storage Temperature Range | -55°C to +150°C |
| Operating Temperature Range | -55°C to +150°C |
| Reverse Leakage Current (IR) | 5 µA (max at 25°C) |
| Peak Forward Surge Current (IFSM) | 150 A |
| Repetitive Peak Reverse Voltage (VRRM) | 600 V |
Similar Components
View All →
Assorted Resistor Kit for Arduino Starter Projects
The TecnoMate Assorted Resistor Kit is an essential collection for electronics hobbyists, engineering students, and Arduino enthusiasts in India. This comprehensive set features high-precision 1/4W metal film resistors across 30 popular values ranging from 10Ω to 1MΩ. Designed for breadboard prototyping and permanent soldering, these resistors offer a ±1% tolerance for reliable circuit performance. Whether limiting LED current or building voltage dividers for microcontrollers, this kit ensures you always have the right resistance value on hand for your DIY projects.
₹412.00

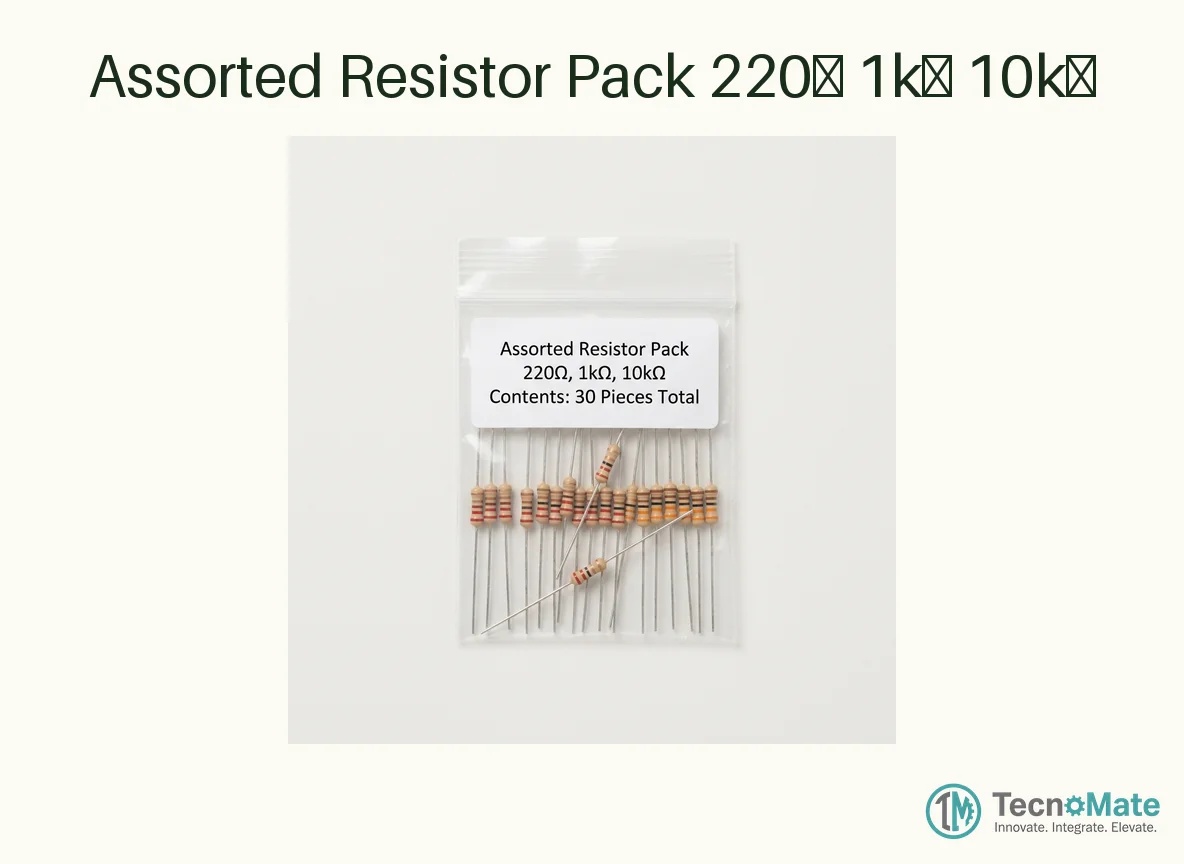

Assorted Resistor Pack 220Ω 1kΩ 10kΩ
