Arduino Controlled LED Strip
Control an LED strip using Arduino to create ON/OFF and basic lighting effects, introducing PWM control and practical home lighting automation.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹1101.00
Inclusive of all taxes
Components
10 items
Difficulty
Beginner
Build Time
30 – 45 minutes
Project Details
How It Works

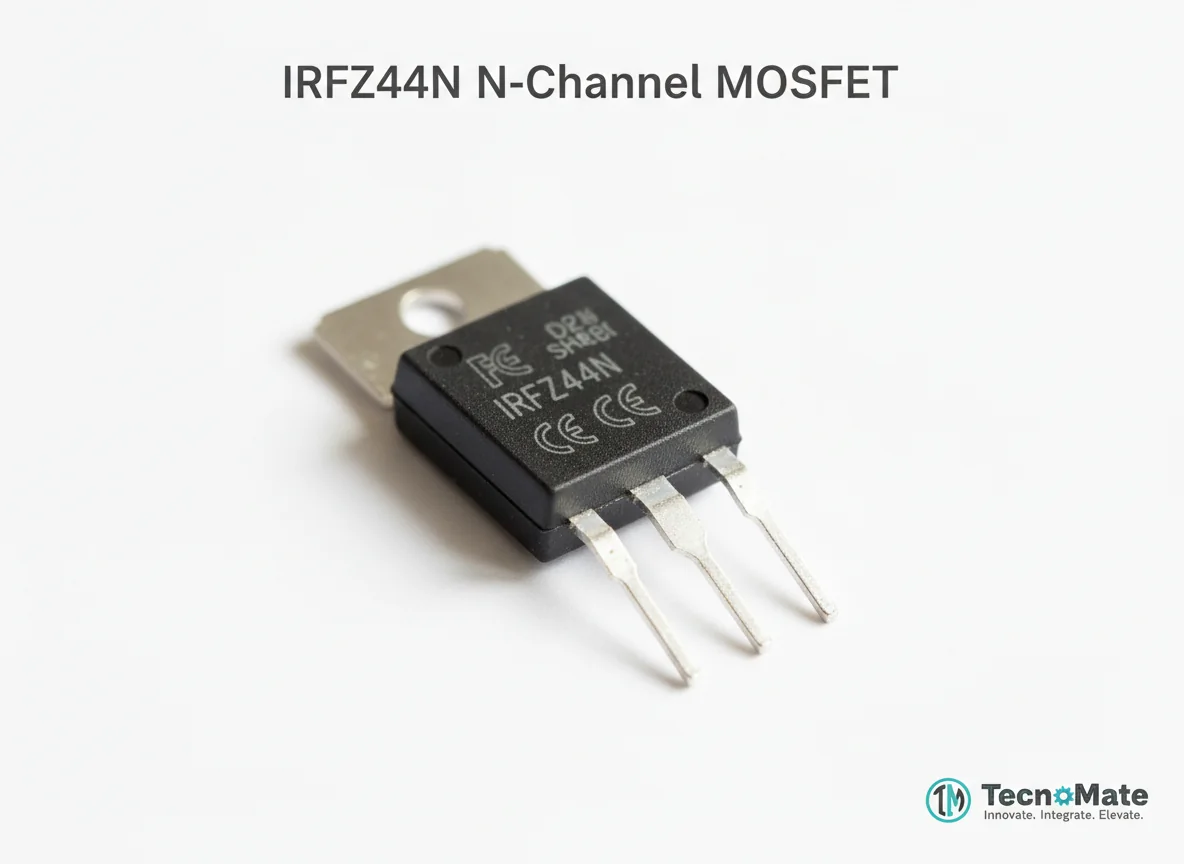

How It WorksThe Arduino generates a PWM signal on pin D9 that controls the MOSFET gate. The MOSFET acts as a switch, turning the LED strip on/off rapidly. By varying the PWM duty cycle, the perceived brightness changes. The 220Ω resistor limits current to the MOSFET gate, while the 10kΩ resistor pulls the gate low when Arduino is off. The diode protects against back EMF from the inductive load of the LED strip. The external 12V power supply provides sufficient current for the LED strip, while Arduino controls the switching safely.
Prerequisites
Basic understanding of Arduino programming (setup and loop functions), familiarity with PWM concepts, and knowledge of basic electronics (resistors, transistors, and power supplies).

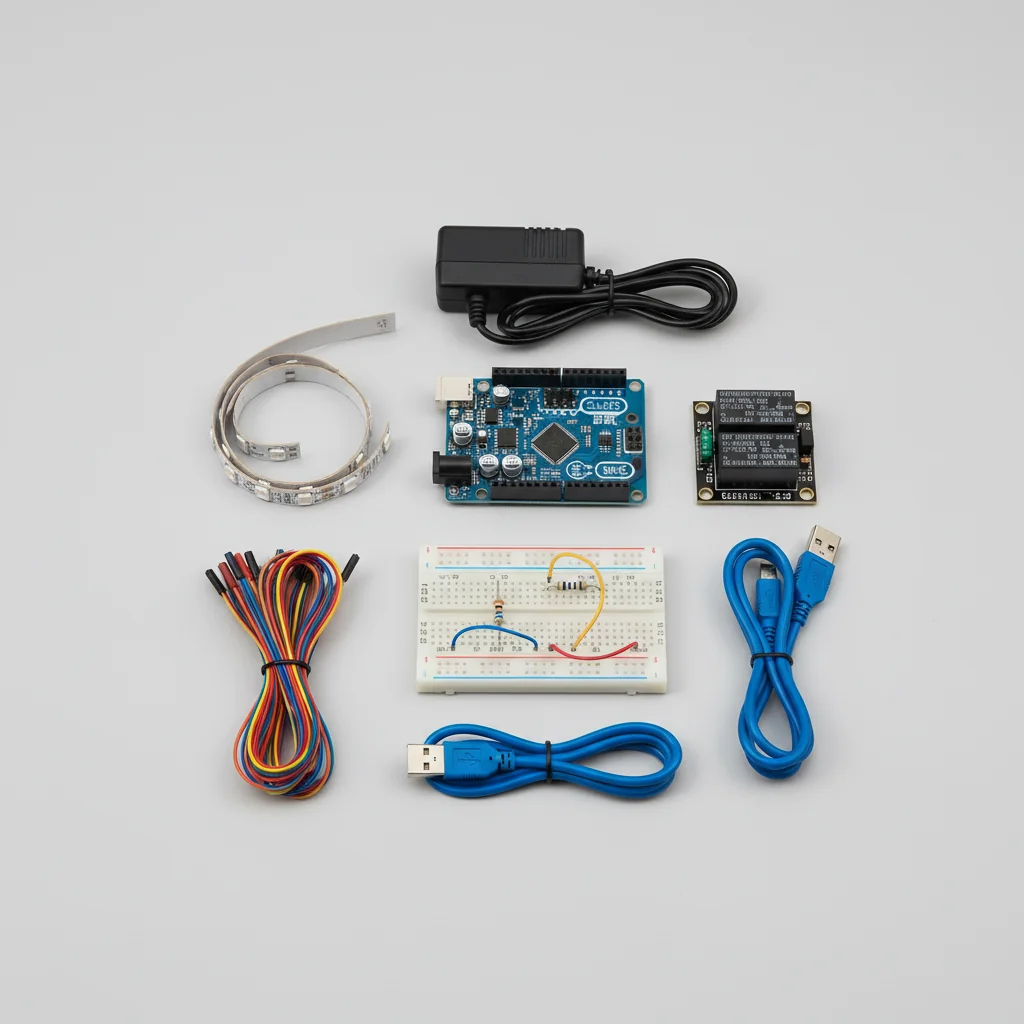

What's Included in the Kit
| Component | Qty | Price |
|---|---|---|
| 1 | ₹0.00 | |
| 1 | ₹0.00 | |
| 1 | ₹0.00 | |
| 1 | ₹0.00 | |
| 1 | ₹0.00 | |
| 1 | ₹0.00 | |
| 1 | ₹0.00 | |
| 1 | ₹0.00 | |
| 1 | ₹104.00 | |
| 1 | ₹232.00 |
Operating Instructions
