ESP32 Alexa Voice Controlled Home Automation
Control home appliances using voice commands through Amazon Alexa and ESP32 using cloud-based IoT integration.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹5581.00
Inclusive of all taxes
Components
7 items
Difficulty
Advanced
Build Time
2-4 hours
Project Details
How It Works

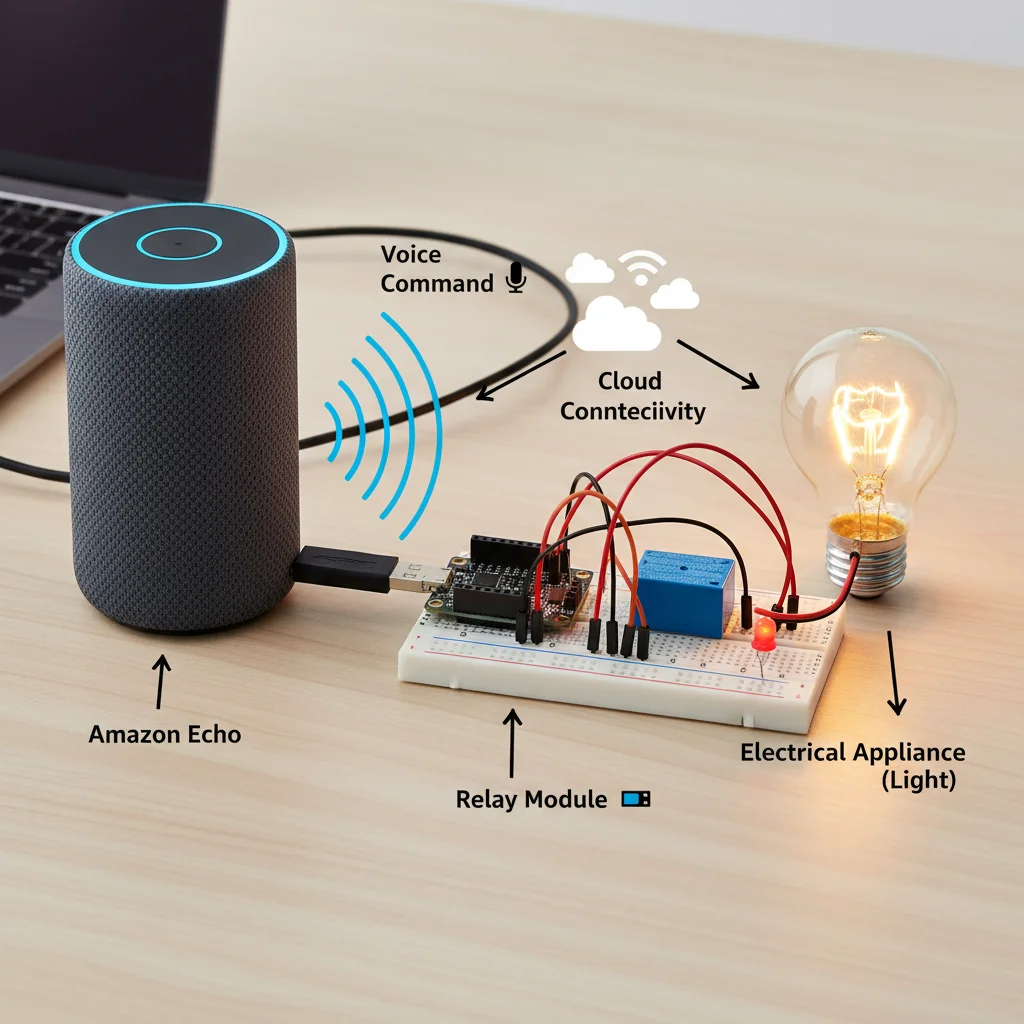

How It WorksThe system works by connecting Amazon Alexa to the Sinric Pro cloud service, which acts as a bridge between voice commands and the ESP32. When a user says 'Alexa, turn ON the bedroom light', Alexa sends the command to Sinric Pro. Sinric Pro processes the command and sends a signal to the ESP32 via the internet. The ESP32 receives the signal and toggles the relay connected to GPIO 2, which switches the AC appliance on or off. The ESP32 uses WiFi to maintain constant communication with the Sinric Pro cloud.
Prerequisites
Basic knowledge of ESP32 programming, understanding of IoT concepts, familiarity with Arduino IDE, and experience with basic electronics and wiring. Users should also have an Amazon account and access to the Alexa app.
What You'll Learn
What You'll LearnLearn to connect and configure Alexa with IoT devices
Understand how voice commands are processed and converted to actions
Implement cloud-based communication protocols for IoT
Work with standard smart home protocols and APIs
Deploy a functional IoT system for home automation
Key Features
Control devices using voice commands without physical interaction
Internet-based control allows remote operation via Alexa
Uses existing Alexa app for control, no additional app development required
Can control multiple appliances by adding device IDs
Uses secure protocols for cloud-to-device communication

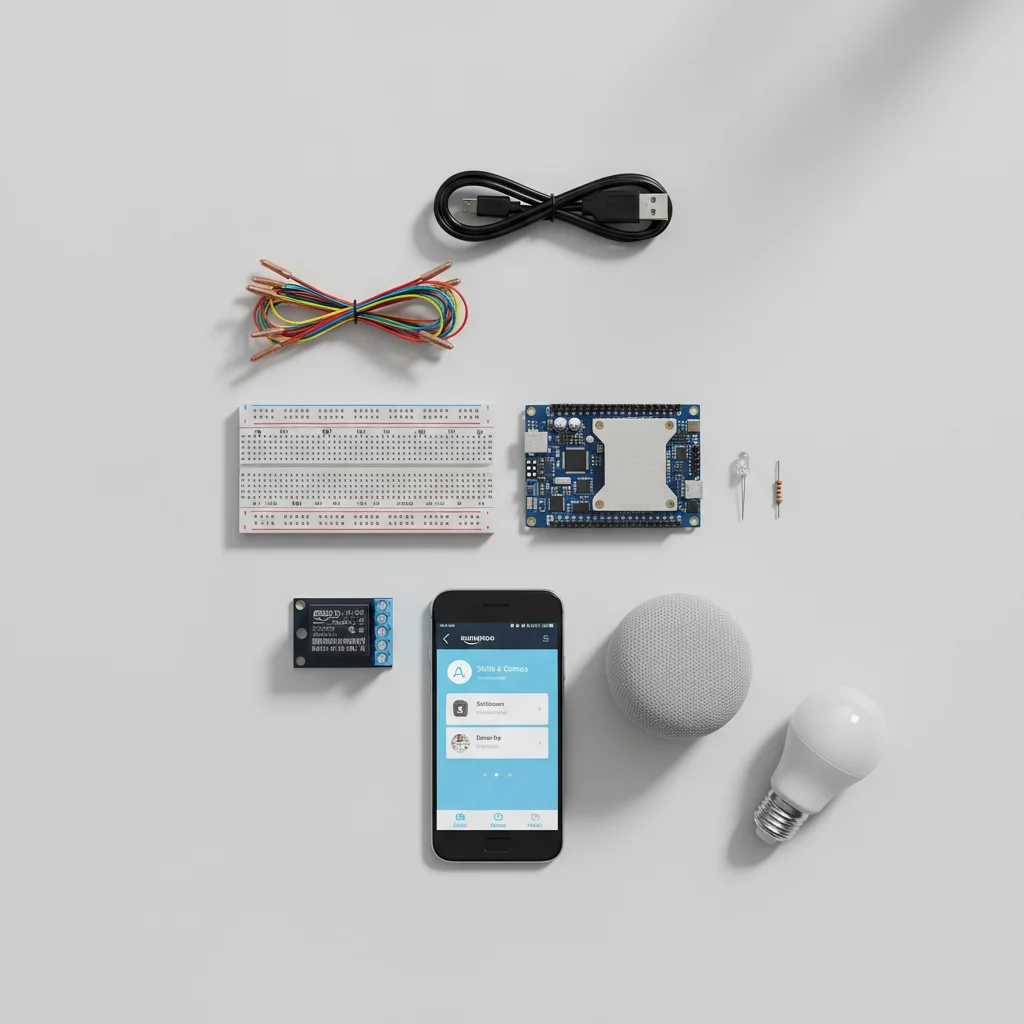

What's Included in the Kit
| Component | Qty | Price |
|---|---|---|
 | 1 | ₹1682.00 |
 | 1 | ₹0.00 |
 | 1 | ₹0.00 |
 | 1 | ₹0.00 |
 | 1 | ₹171.00 |
 | 1 | ₹190.00 |
Amazon Alexa Device / App | 1 | ₹0.00 |
Operating Instructions
Pin Connections
Pin Connections| MCU Pin | Connected To | Purpose | Notes |
|---|---|---|---|
| GPIO 2 | Relay IN | Control signal for relay switching | Active LOW configuration in code |
| 5V | Relay VCC | Power supply for relay module | Ensure relay module is compatible with 5V |
| GND | Relay GND | Common ground connection | Essential for proper circuit operation |
Tools Required
Tools RequiredSafety Precautions
Electrical
- ⚠HIGH-VOLTAGE WARNING: Switch OFF mains before wiring
- ⚠Use opto-isolated relay modules for safety
- ⚠Keep AC & DC sides isolated to prevent electric shock
- ⚠Use protective casing for exposed high-voltage connections
Frequently Asked Questions
Frequently Asked QuestionsQ:Is Sinric Pro free?
Q:Can multiple appliances be controlled?
Q:Does it work outside home network?
Q:Is Alexa Echo device mandatory?
