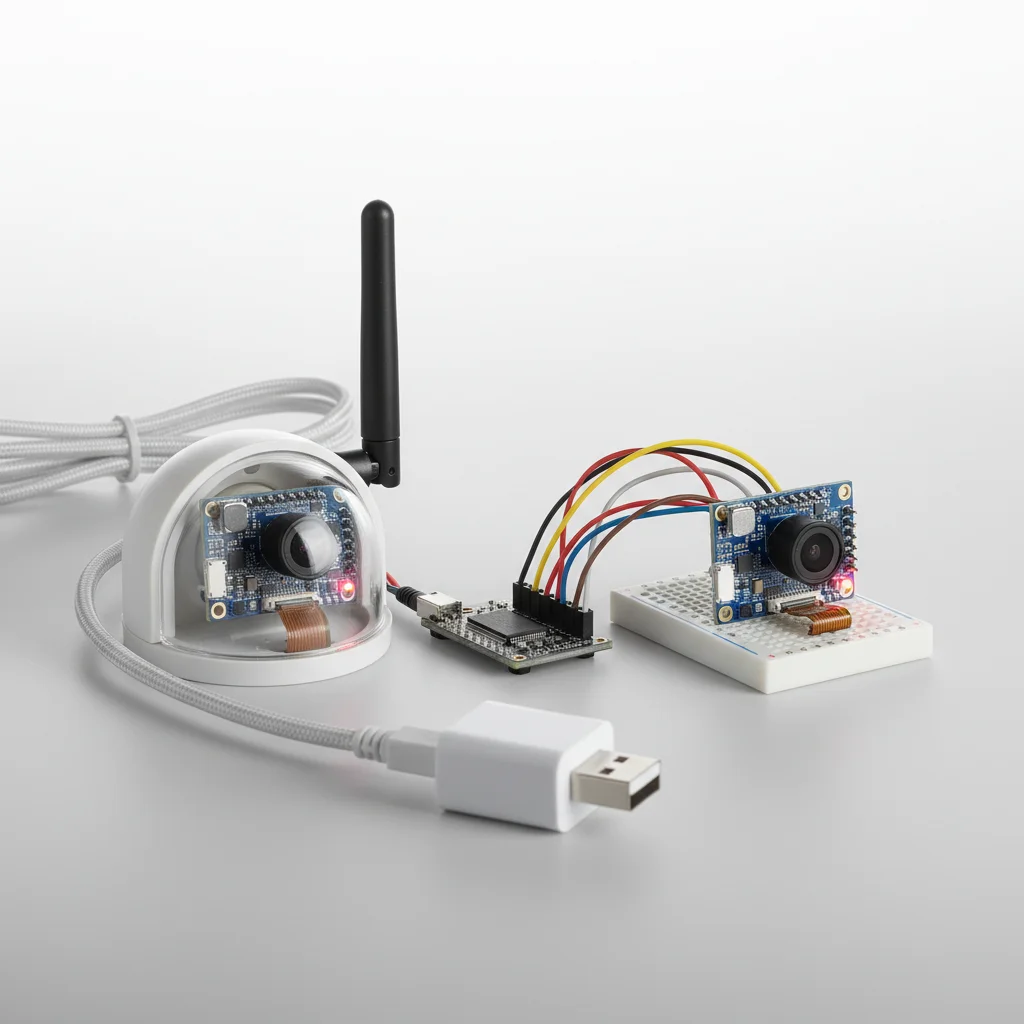

ESP32-CAM CCTV Security System
Build a complete low-cost Wi-Fi CCTV security system using ESP32-CAM with live streaming, motion detection, and image capture.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹3878.00
Inclusive of all taxes
Components
8 items
Difficulty
Advanced
Build Time
3 – 5 hours
Project Details
How It Works
How It WorksThe ESP32-CAM connects to a Wi-Fi router and runs a web server. It streams video over the local network to any web browser. Motion detection is implemented using the camera's image processing capabilities. When motion is detected, the system can automatically capture and save images to an SD card. The system can also trigger optional alarms via relays or buzzers. All processing happens locally on the ESP32-CAM, ensuring privacy and reducing latency.
Prerequisites
Basic knowledge of Arduino programming, understanding of Wi-Fi networking concepts, familiarity with microcontroller programming, and experience with ESP32 or similar platforms. Users should also understand local surveillance laws and privacy considerations.
What You'll Learn
What You'll LearnLearn to stream video over Wi-Fi using IP addresses
Implement web servers on microcontrollers for control interfaces
Design systems that respond to motion detection events
Store images and data locally on SD cards
Create complete IoT surveillance systems with multiple features
Key Features
Access camera feed through browser using ESP32 IP address
Detects movement and triggers actions like image capture or alarms
Saves images automatically when motion is detected
Stores images on SD card without cloud dependency
Adjust resolution, brightness, and detection sensitivity through web interface

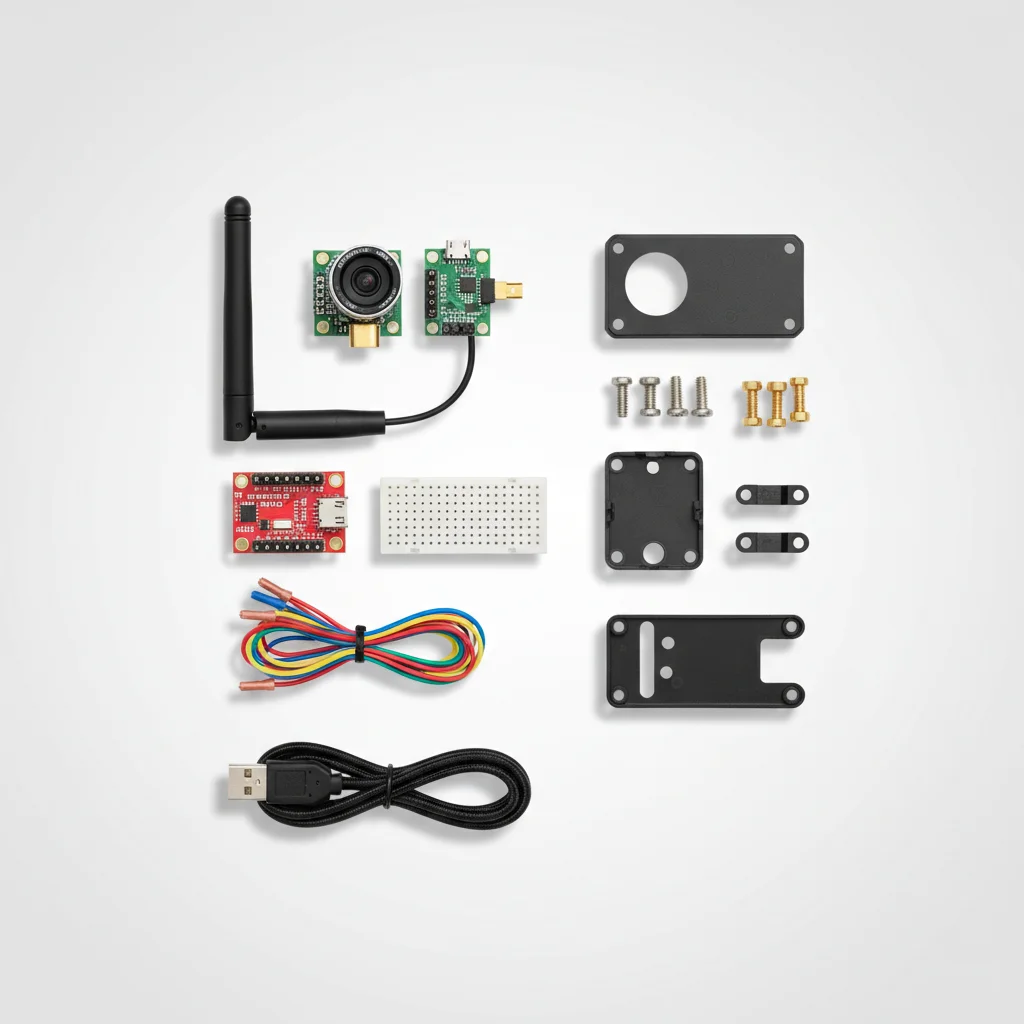

What's Included in the Kit
| Component | Qty | Price |
|---|---|---|
 | 1 | ₹648.00 |
 | 1 | ₹110.00 |
 | 1 | ₹0.00 |
 | 1 | ₹171.00 |
 | 1 | ₹0.00 |
 | 1 | ₹0.00 |
 | 1 | ₹0.00 |
 | 1 | ₹0.00 |
Operating Instructions
Pin Connections

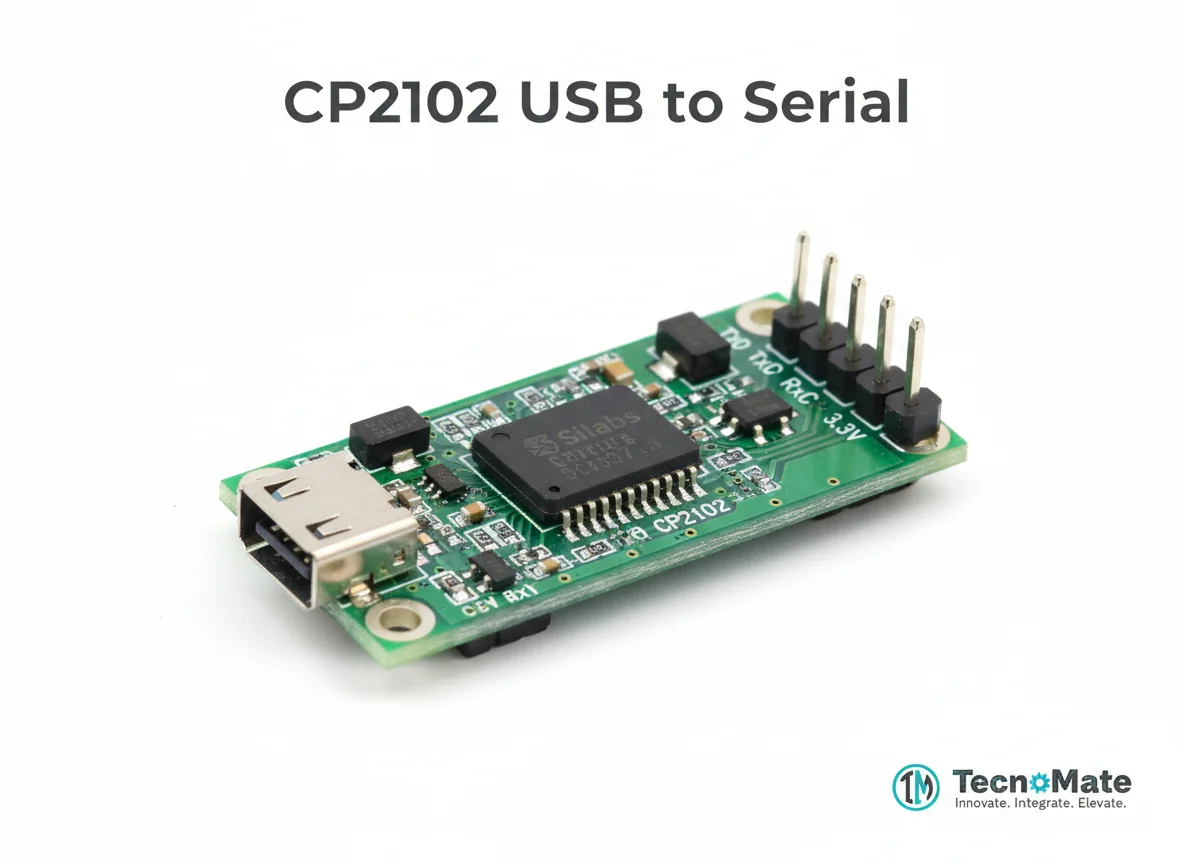

Pin Connections| MCU Pin | Connected To | Purpose | Notes |
|---|---|---|---|
| 5V | FTDI 5V | Power supply connection | Use regulated 5V supply only |
| GND | FTDI GND | Ground connection | - |
| U0R | FTDI TX | Serial communication (RX) | - |
| U0T | FTDI RX | Serial communication (TX) | - |
| IO0 | FTDI GND | Upload mode enable | Disconnect IO0 after upload |
Tools Required
Tools RequiredSafety Precautions
Electrical
- ⚠Use regulated 5V supply only
- ⚠Do not power via 3.3V
- ⚠Ensure proper ventilation
General
- ⚠Follow local surveillance laws
- ⚠Inform users before recording
Frequently Asked Questions
Frequently Asked QuestionsQ:Can it replace professional CCTV?
Q:Can I access it outside my home network?

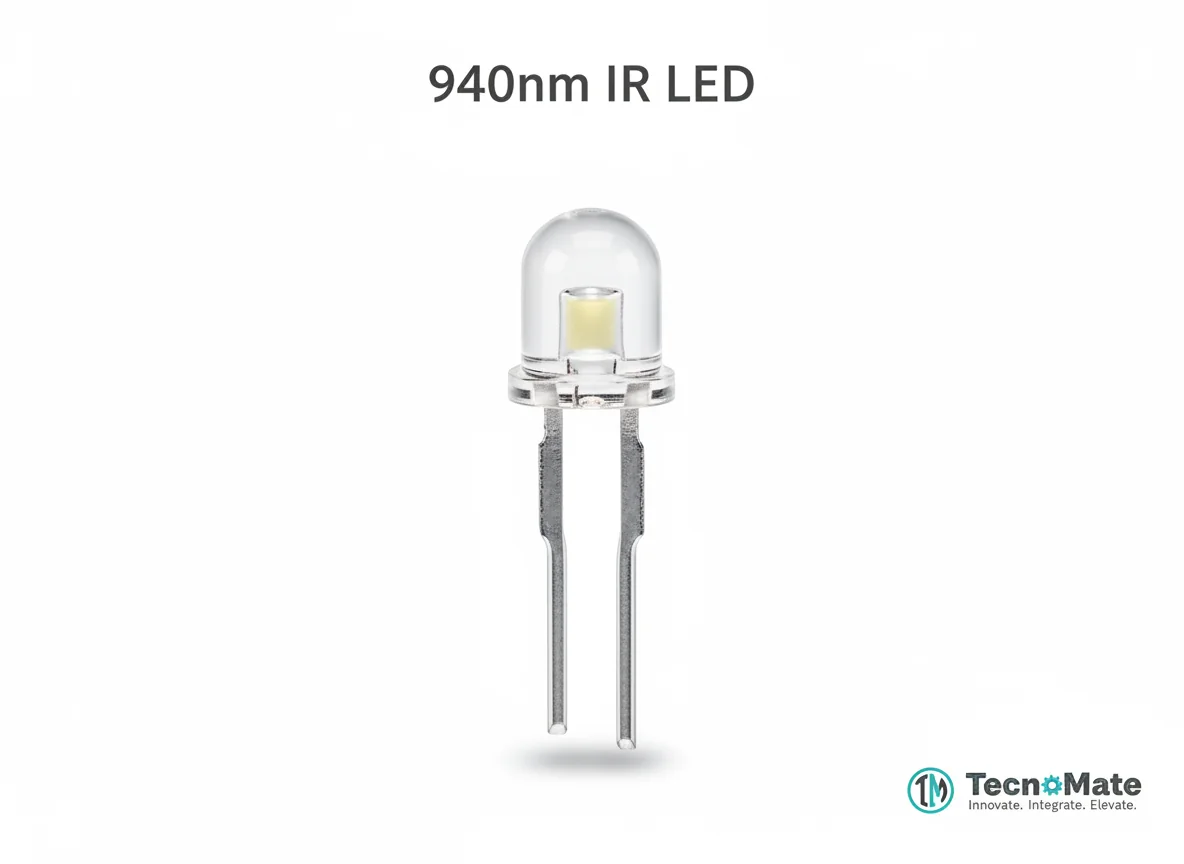

Q:Does it support night vision?
Q:Can it send notifications?
