ESP32 Indoor Positioning System (UWB)

An ESP32-based Indoor Positioning System using UWB (Ultra-Wideband) modules for accurate real-time location tracking within indoor environments.

₹34660.00

Inclusive of all taxes

Development fee₹2359.00

Components (from library)₹32301.00

Total per unit (incl. GST)₹34660.00

Secure payments via Razorpay
7-day returns on defective items
GST invoice on every order

In stock

Free delivery on orders above ₹2,000

Delivers in 4-7 business days

Check delivery at your pincode

Quantity:

Total: ₹34660.00

₹34660.00

Inclusive of all taxes

Components

6 items

Difficulty

Advanced

Build Time

4 – 6 hours

Project Details

The ESP32 Indoor Positioning System (IPS) leverages UWB technology for high-precision real-time location tracking. The system uses ESP32 boards as anchors and tags to determine the position of moving objects inside buildings or rooms. Applications include asset tracking, smart home automation, robotics navigation, and indoor navigation systems. Anchors are placed at known positions, and the tag sends UWB signals to all anchors. Anchors reply to the tag signal using Two-Way Ranging (TWR), and the ESP32 calculates distances from signal timing. Triangulation determines the tag's (X, Y) location, with real-time positions displayed on a serial monitor or dashboard.

How It Works

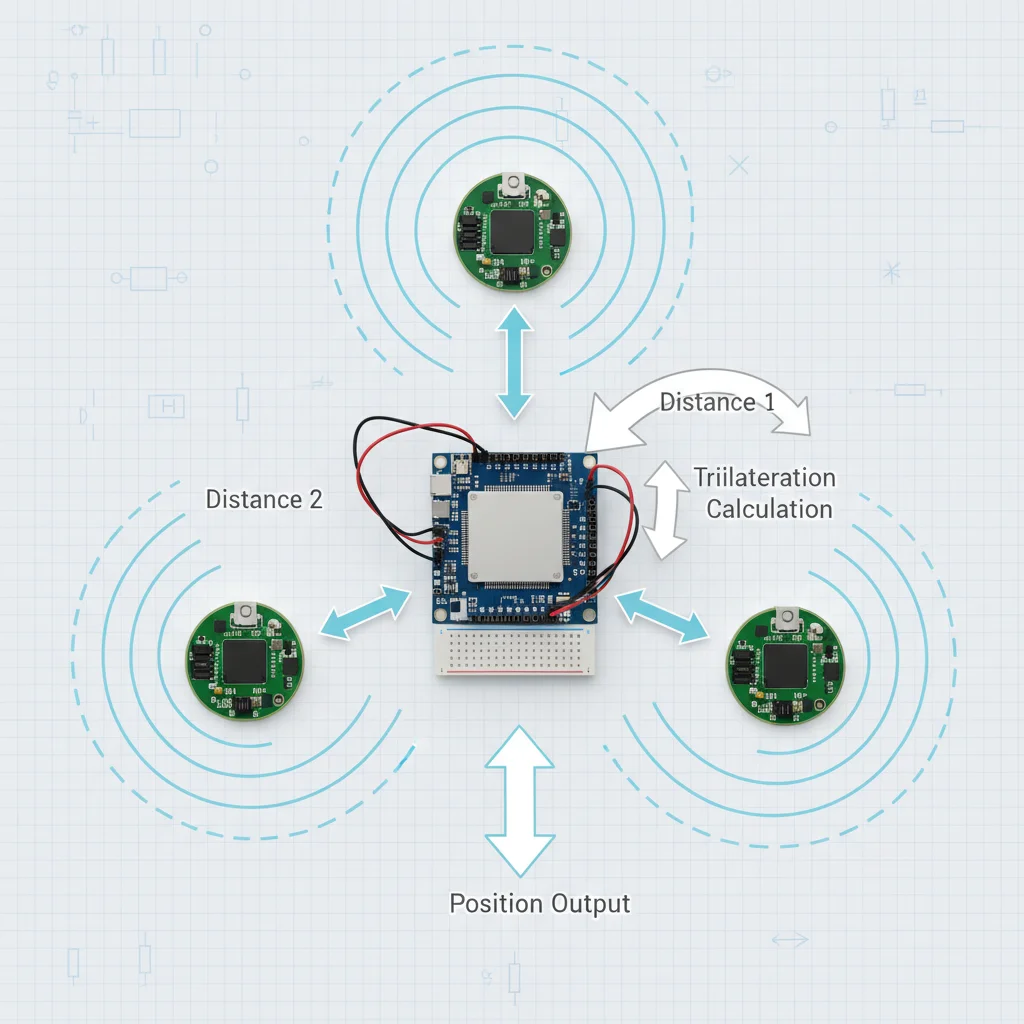

The system uses ESP32 boards as anchors (fixed positions) and tags (mobile objects). Anchors are placed at known positions in the room. The tag sends a UWB signal to all anchors. Anchors reply to the tag signal using Two-Way Ranging (TWR) to measure distance. The ESP32 calculates distances from signal timing. Triangulation or multilateration determines the tag's (X, Y) location. Real-time positions are displayed on a serial monitor or dashboard.

Prerequisites

Basic knowledge of ESP32 programming, SPI communication, and basic electronics. Familiarity with Arduino IDE and C++ programming is recommended. Understanding of basic trigonometry for position calculation is helpful.

What You'll Learn

UWB technology basics

Understanding Ultra-Wideband principles and applications

Real-time distance measurement

Using UWB for precise distance calculations

ESP32 SPI and communication

Implementing SPI communication with UWB modules

Triangulation / multilateration algorithms

Calculating position using distance measurements from multiple anchors

Real-time IoT visualization

Displaying location data on serial monitor or dashboard

Key Features

✓

High-accuracy indoor tracking

Provides location accuracy of less than 10 cm

✓

Multi-anchor support

Works with 2-4 anchors for improved coverage

✓

Real-time display

Shows X,Y coordinates in real-time on serial monitor

✓

Mobile or web dashboard compatible

Can be integrated with visualization tools for remote monitoring

What's Included in the Kit

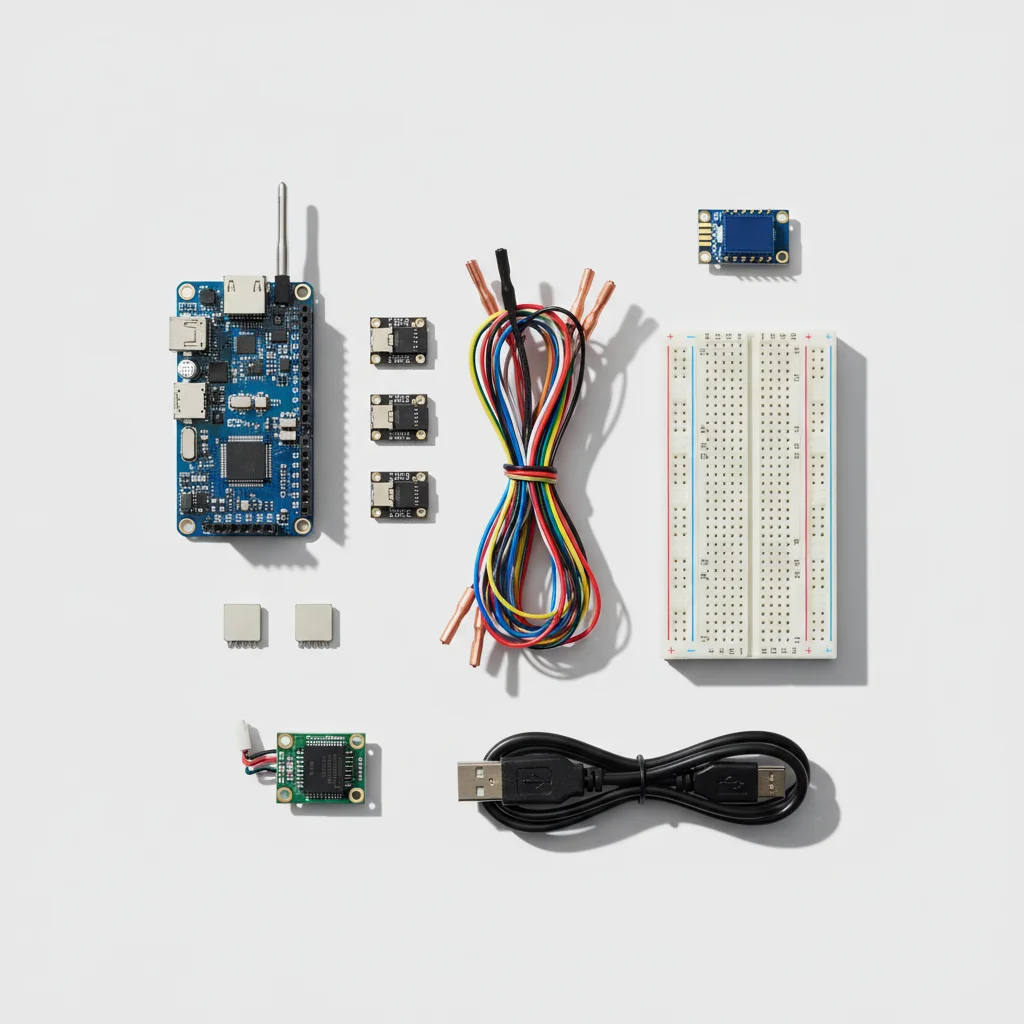

ESP32 Indoor Positioning System (UWB) - All components

Component	Part ID	Qty	Price	Description
ESP32 Dev Board	-	5	₹0.00₹0.00 × 5	-

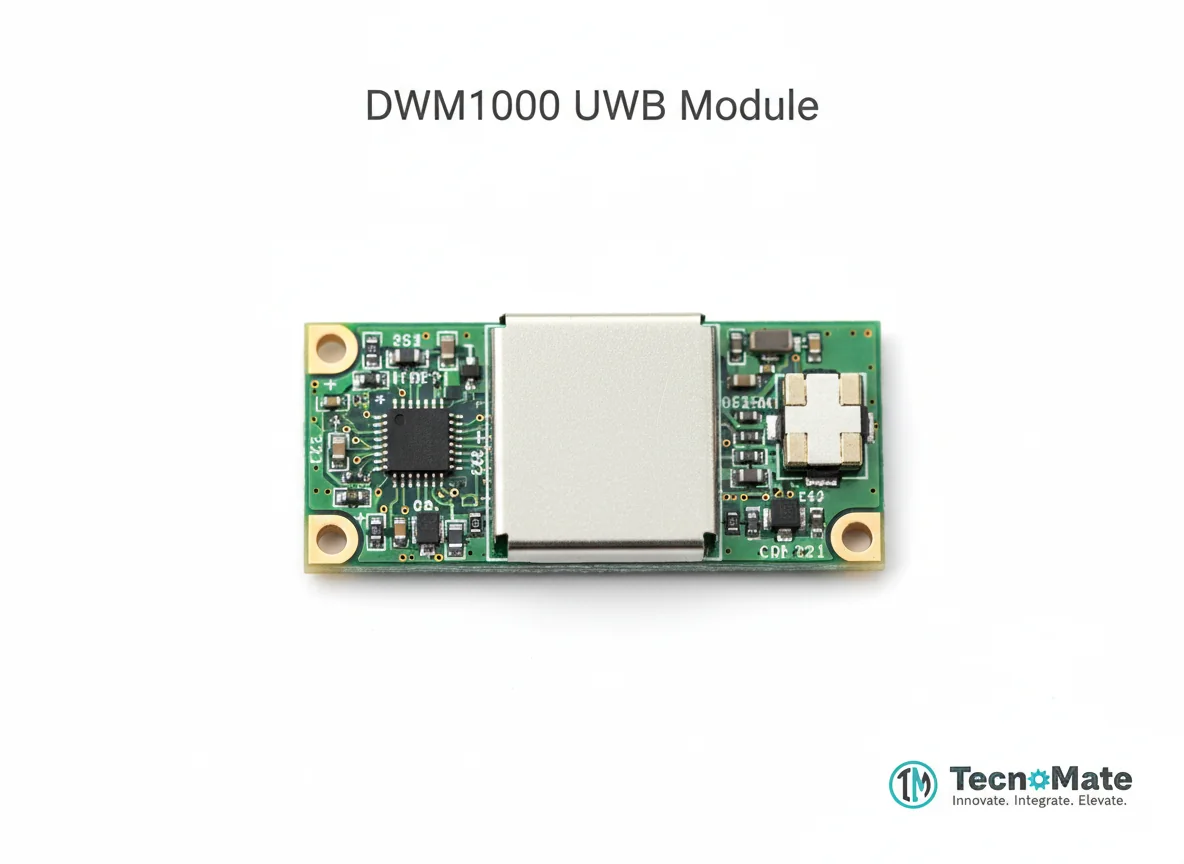

UWB Module (DecaWave DWM1000 / DWM3000)	-	5	₹32037.00₹6407.00 × 5	-
Jumper Wires	-	1	₹171.00	-
Breadboard	-	1	₹77.00	-
Wi-Fi Network	-	1	₹0.00	-
Power Supply / Li-ion Battery	-	1	₹16.00	-

Pin Connections

MCU Pin	Connected To	Purpose	Notes
5V	DWM1000 VCC	Power supply	Check voltage compatibility (3.3V for DWM1000)
GND	DWM1000 GND	Ground connection	-
GPIO 5	DWM1000 CS	SPI Chip Select	Can be customized in software
GPIO 18	DWM1000 SCK	SPI Clock	Can be customized in software
GPIO 19	DWM1000 MISO	SPI Master In Slave Out	Can be customized in software
GPIO 23	DWM1000 MOSI	SPI Master Out Slave In	Can be customized in software
GPIO 4	DWM1000 IRQ	Interrupt request	Can be customized in software

Tools Required

Arduino IDE

USB cable

MultimeterOptional

Laptop / PC

Safety Precautions

Electrical

⚠Check voltage compatibility (3.3V for DWM1000)
⚠Avoid short circuits when wiring components

Handling

⚠Handle UWB modules carefully to avoid damage
⚠Ensure proper grounding to prevent static discharge

Frequently Asked Questions

Q:Can this track multiple tags?

A: Yes, with multiple ESP32-UWB tags and anchors. The system can be scaled to track multiple moving objects simultaneously.

Q:Is UWB safe?

A: Yes, UWB is low-power and safe for humans. It operates within regulatory limits for indoor positioning applications.

Q:Can ESP32 alone do trilateration?

A: Yes, but you may need multiple ESP32 anchors for best accuracy. The ESP32 can calculate positions using distance measurements from multiple anchors.

#esp32#uwb#indoor-positioning#iot-tracking#real-time-location
