ESP32

ESP32BeginnerAdvancedesp32loralong-range

ESP32 LoRa Communication

An ESP32-based LoRa communication system enabling long-range, low-power wireless data transmission between nodes for IoT applications.

₹7063.00

Inclusive of all taxes

Development fee₹2358.00

Components (from library)₹4705.00

Total per unit (incl. GST)₹7063.00

Secure payments via Razorpay
7-day returns on defective items
GST invoice on every order

In stock

Free delivery on orders above ₹2,000

Delivers in 4-7 business days

Check delivery at your pincode

Quantity:

Total: ₹7063.00

₹7063.00

Inclusive of all taxes

Components

6 items

Difficulty

Advanced

Build Time

2-3 hours

Project Details

The ESP32 LoRa Communication project allows ESP32 devices to exchange data over several kilometers using LoRa (Long Range) radio technology. Unlike Wi-Fi or Bluetooth, LoRa is designed for low data rate but ultra-long-distance communication. The system uses two ESP32 nodes with LoRa modules for transmitter and receiver functionality, enabling applications like smart agriculture, remote weather stations, smart cities, and asset tracking. The project demonstrates packet-based data transfer with SPI interfacing and is ideal for low-power IoT designs that don't require internet connectivity.

How It Works

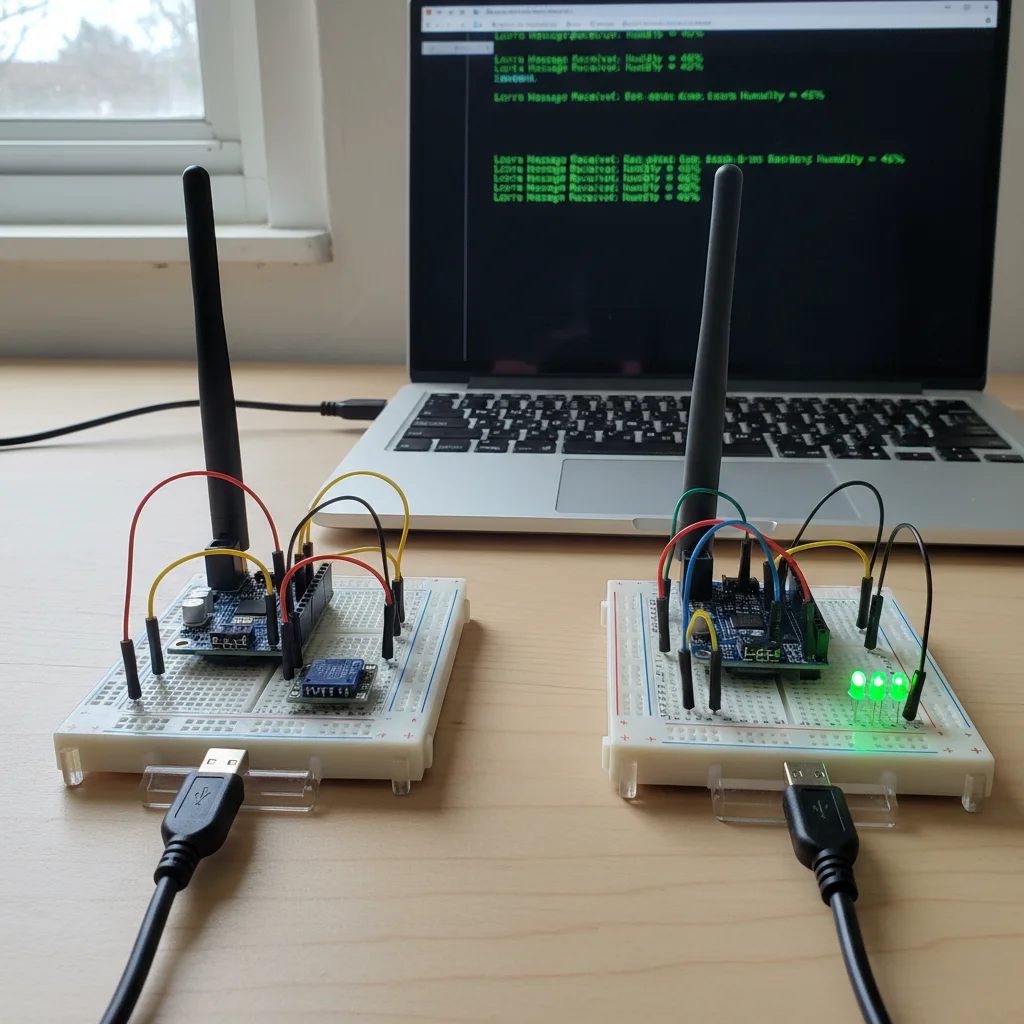

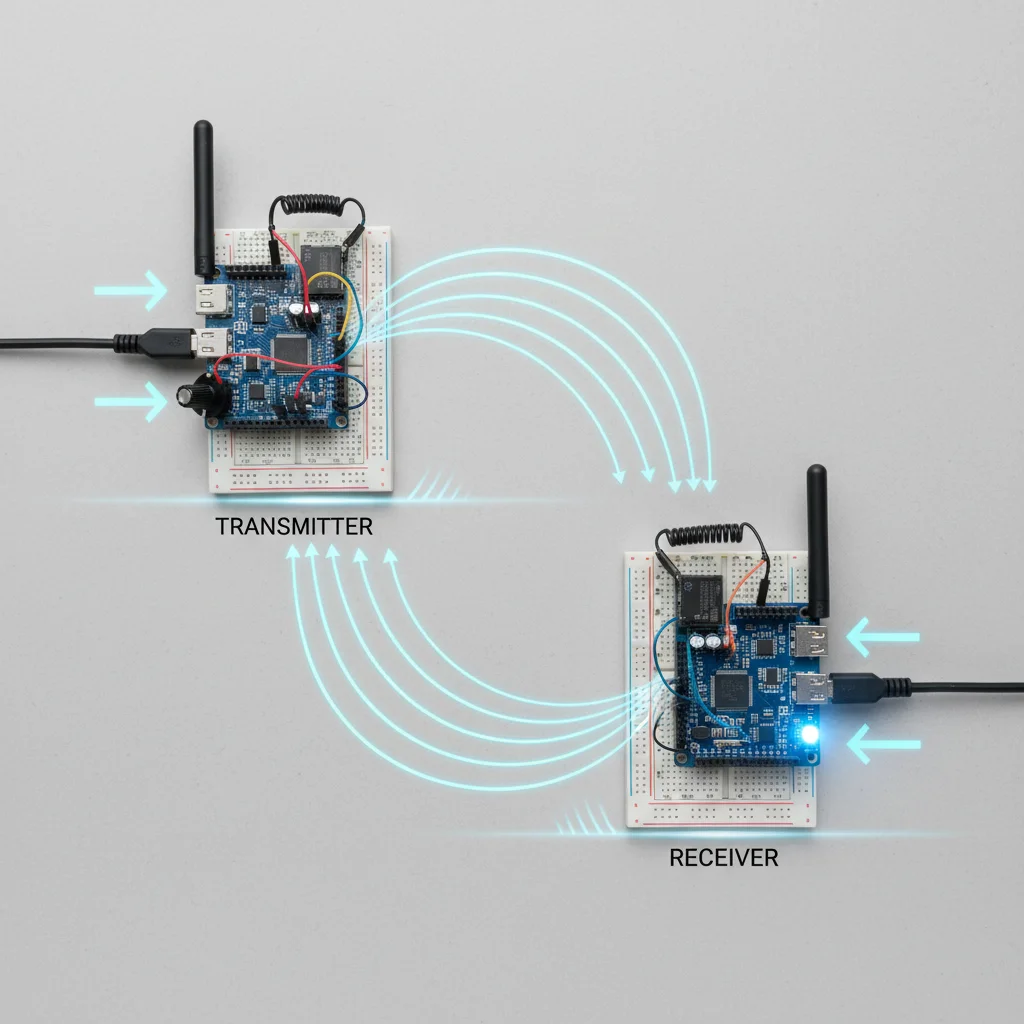

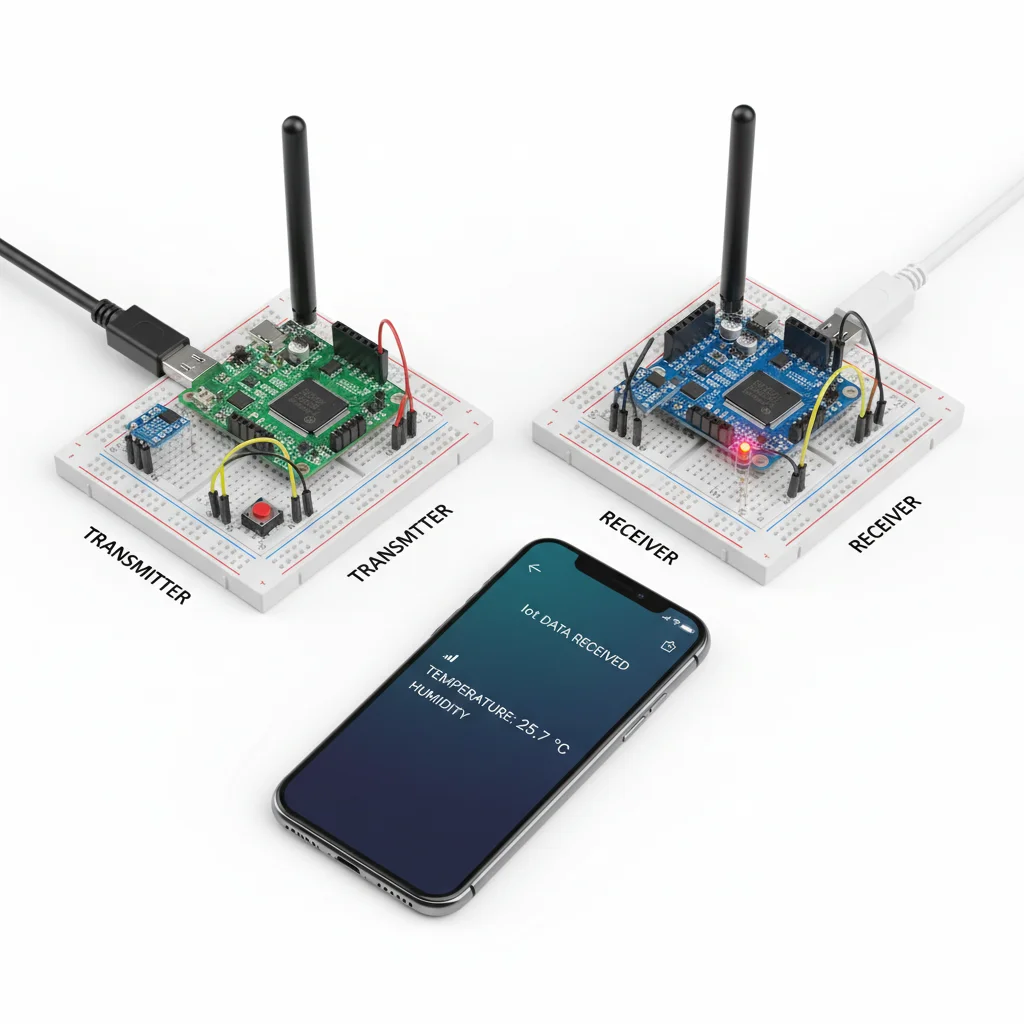

The system consists of two ESP32 nodes with LoRa modules. The transmitter ESP32 reads data, packetizes it, and sends it via the LoRa module. The receiver ESP32 continuously listens for incoming packets, decodes them, and displays the data. Communication occurs over SPI interface between ESP32 and LoRa module, with the LoRa radio handling the wireless transmission using frequency bands like 865-867 MHz (India/Asia), 868 MHz (Europe), or 915 MHz (USA).

Prerequisites

Basic knowledge of Arduino programming, understanding of SPI communication protocol, familiarity with ESP32 development, and awareness of local wireless communication regulations.

What You'll Learn

LoRa radio fundamentals

Understanding LoRa technology and its principles

Long-range communication

Implementing wireless communication over several kilometers

SPI interfacing

Learning SPI protocol for microcontroller-peripheral communication

Packet-based data transfer

Understanding data packetization and transmission

Low-power IoT design

Designing energy-efficient IoT systems

Key Features

✓

Kilometer-range communication

Enables data transmission over several kilometers using LoRa technology

✓

Ultra-low power consumption

Ideal for battery-powered IoT applications

✓

No internet required

Fully offline communication system

✓

Secure packet transmission

Basic packet-based data transfer with potential for encryption

What's Included in the Kit

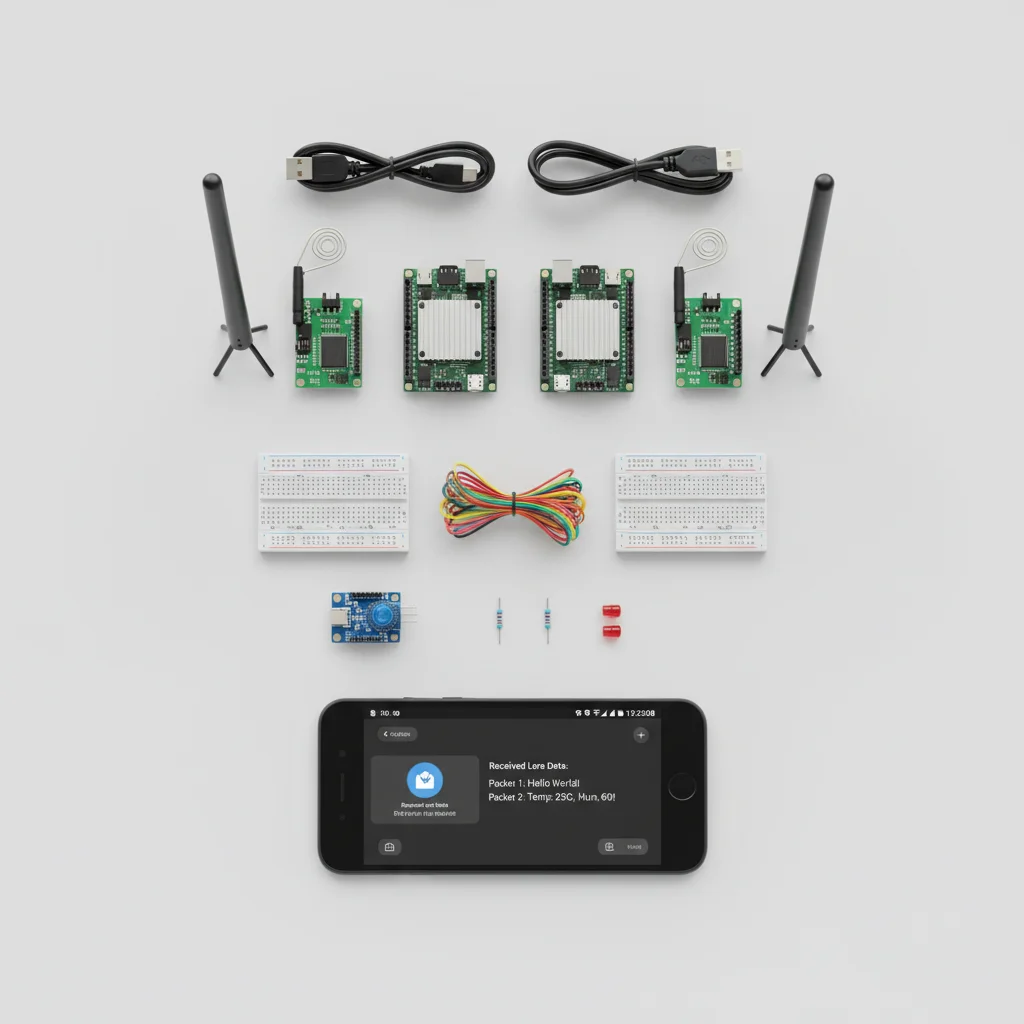

ESP32 LoRa Communication - All components

Component	Part ID	Qty	Price	Description
ESP32 Development Board	-	2	₹3363.00₹1682.00 × 2	-

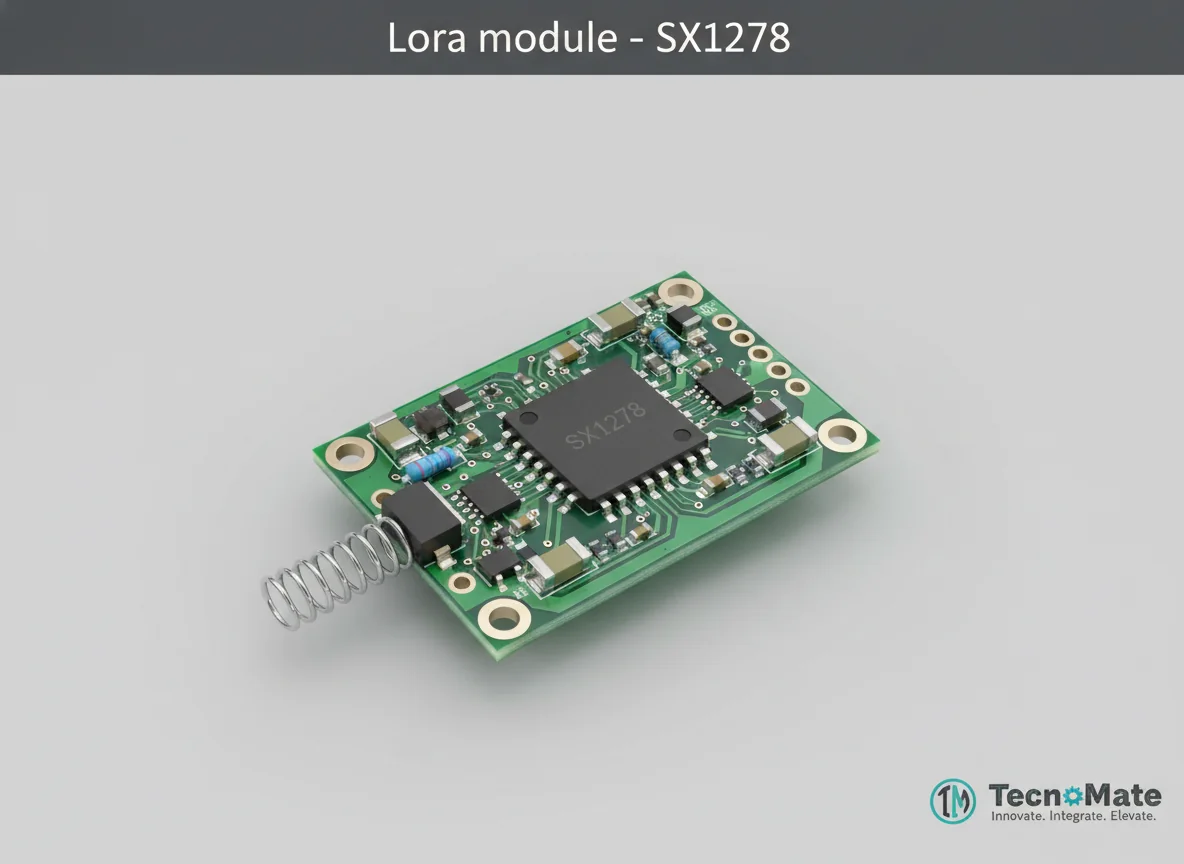

LoRa Module (SX1276 / SX1278)	-	2	₹1017.00₹509.00 × 2	-
Antenna (433/868/915 MHz)	-	2	₹0.00₹0.00 × 2	-
Breadboard	-	2	₹153.00₹77.00 × 2	-
Jumper Wires	-	1	₹171.00	-
Power Supply	-	2	₹0.00₹0.00 × 2	-

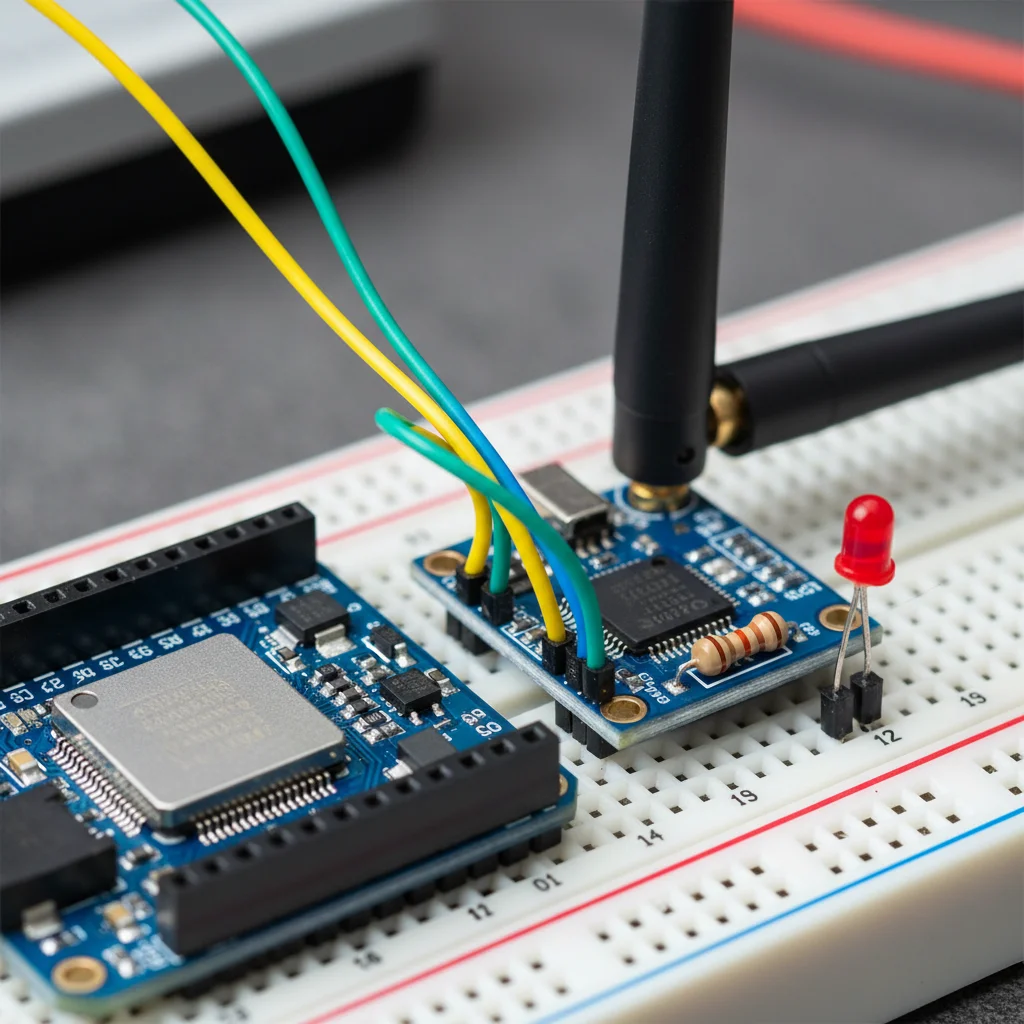

Pin Connections

MCU Pin	Connected To	Purpose	Notes
3.3V	LoRa Module VCC	Power supply	LoRa module requires 3.3V
GND	LoRa Module GND	Ground connection	-
GPIO 18	LoRa Module SCK	SPI clock signal	-
GPIO 19	LoRa Module MISO	SPI data from module to ESP32	-
GPIO 23	LoRa Module MOSI	SPI data from ESP32 to module	-
GPIO 5	LoRa Module NSS	SPI chip select	-
GPIO 14	LoRa Module RST	Reset signal	-
GPIO 26	LoRa Module DIO0	Digital I/O for interrupt	-

Tools Required

Arduino IDE

USB Cable

Serial Monitor

Safety Precautions

Electrical

⚠Ensure proper voltage levels (3.3V) for ESP32 and LoRa module
⚠Avoid short circuits when connecting components
⚠Use appropriate power supply with current rating

Operating

⚠Always follow local regulations for LoRa frequencies
⚠Avoid public frequencies misuse
⚠Check antenna compatibility with frequency band

General

⚠Handle components with care to avoid static damage
⚠Ensure proper antenna connection for optimal range

Frequently Asked Questions

Q:What is the maximum LoRa range?

A: Up to 15 km (line-of-sight), though actual range depends on antenna quality, terrain, and obstacles.

Q:Can ESP32 use LoRaWAN?

A: Yes, with proper LoRaWAN stack implementation, though this project demonstrates basic LoRa communication.

Q:Is internet required for this project?

A: No, the system works completely offline for point-to-point communication between ESP32 nodes.
