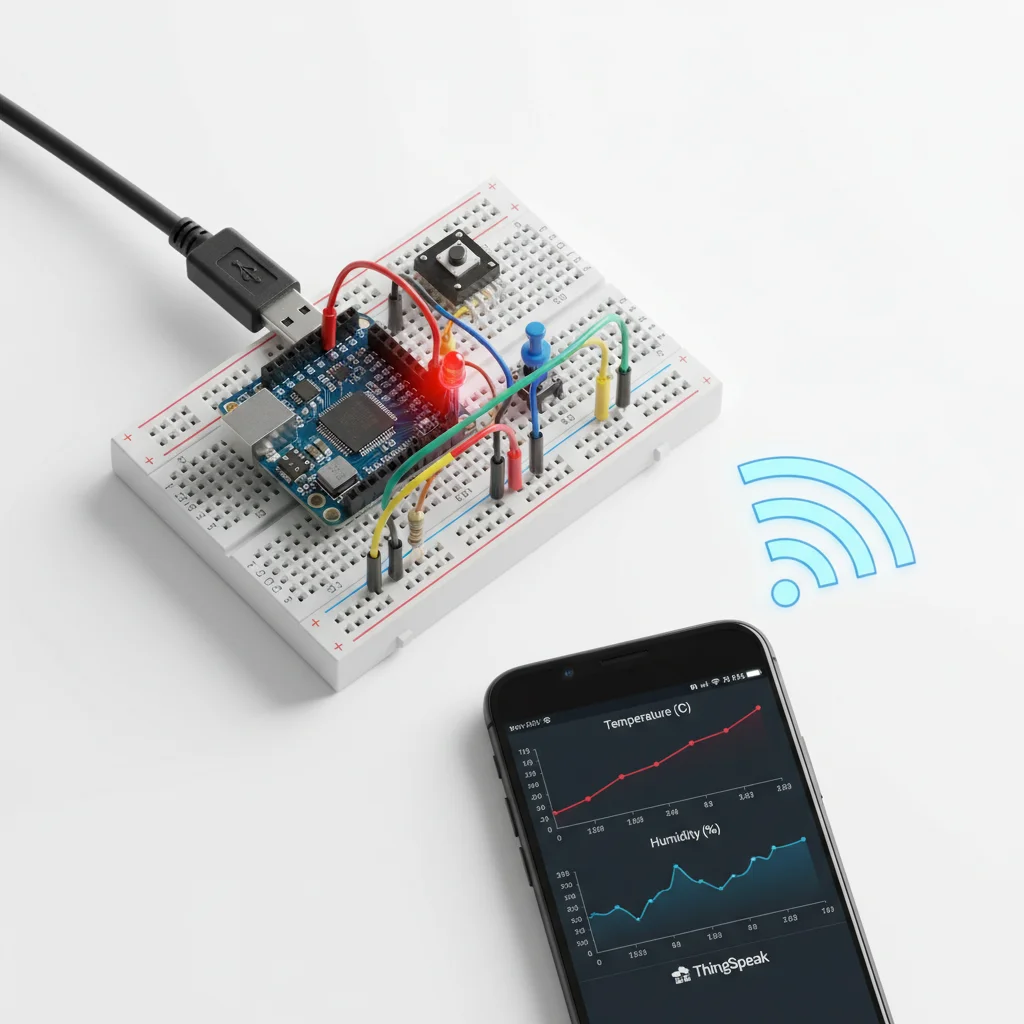

ESP32 ThingSpeak Data Logger

An ESP32-based data logging system that uploads sensor data to ThingSpeak cloud for real-time visualization and analysis.

₹3698.00

Inclusive of all taxes

Development fee₹1769.00

Components (from library)₹1929.00

Total per unit (incl. GST)₹3698.00

Secure payments via Razorpay
7-day returns on defective items
GST invoice on every order

In stock

Free delivery on orders above ₹2,000

Delivers in 4-7 business days

Check delivery at your pincode

Quantity:

Total: ₹3698.00

₹3698.00

Inclusive of all taxes

Components

5 items

Difficulty

Intermediate

Build Time

1 – 2 hours

Project Details

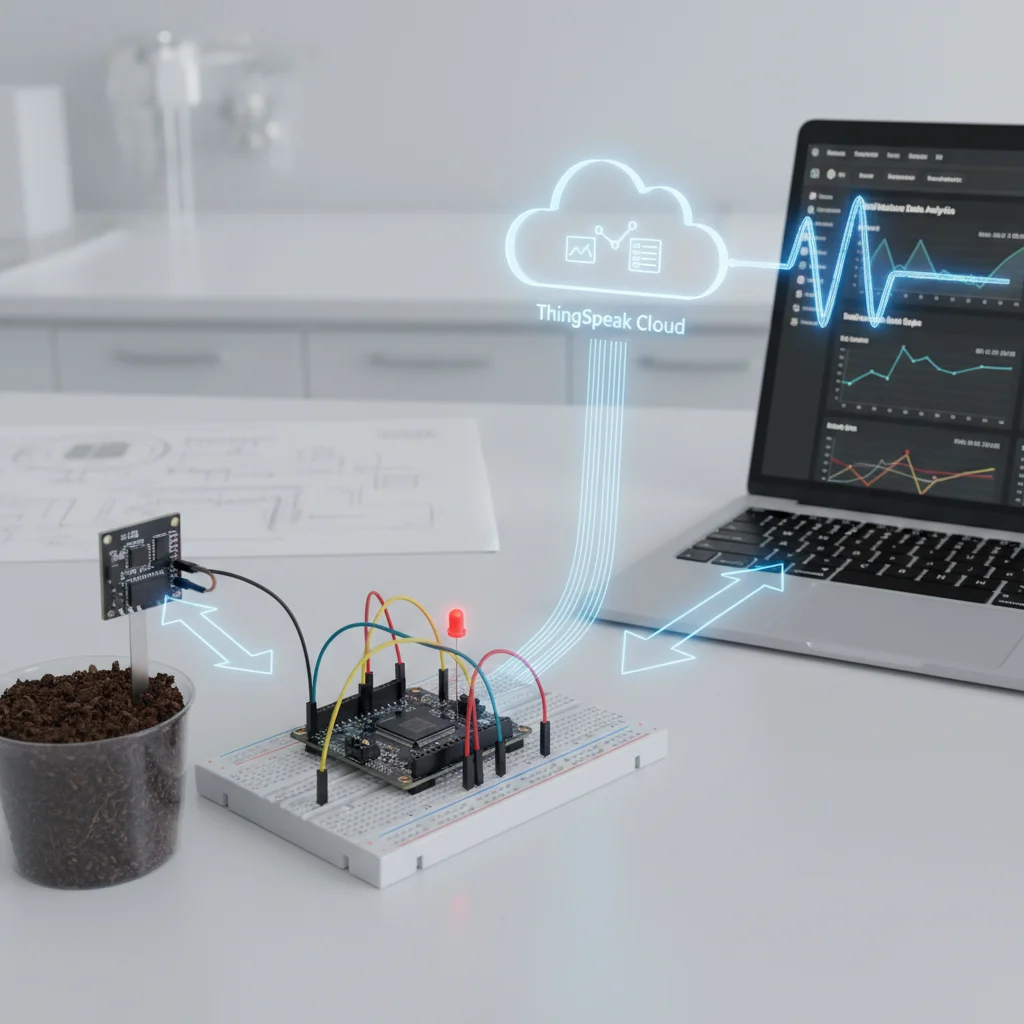

The ESP32 ThingSpeak Data Logger collects sensor data and uploads it to the ThingSpeak cloud platform. ThingSpeak automatically plots graphs, stores historical data, and allows MATLAB-based analysis without any backend coding. This project is widely used in environmental monitoring, academic research, smart agriculture, and energy analysis. The system architecture is ESP32 → WiFi → ThingSpeak Cloud → Web Dashboard. The working principle involves ESP32 reading sensor data, connecting to Wi-Fi, formatting data into ThingSpeak fields, uploading using HTTP, and ThingSpeak storing and visualizing data for user viewing of real-time and historical graphs.

How It Works

The ESP32 reads sensor data (like temperature and humidity from a DHT22 sensor). It connects to a Wi-Fi network and formats the data into ThingSpeak fields. Using HTTP requests, the data is uploaded to the ThingSpeak cloud platform. ThingSpeak stores the data and automatically generates graphs for real-time and historical visualization. Users can view the data through a web dashboard and perform analysis using MATLAB integration.

Prerequisites

Basic knowledge of Arduino programming, understanding of Wi-Fi concepts, and familiarity with cloud platforms. Users should have an ESP32 board, a compatible sensor, and a Wi-Fi network available.

What You'll Learn

Cloud data logging

Learn to send sensor data to cloud platforms

HTTP communication

Understand HTTP requests for data transmission

ESP32 Wi-Fi handling

Configure and manage Wi-Fi connections on ESP32

Sensor data visualization

Create real-time graphs and dashboards

IoT analytics basics

Perform basic analysis on collected data

Key Features

✓

Real-time graphs

Live visualization of sensor data on ThingSpeak dashboard

✓

Historical data storage

Long-term storage of sensor readings for analysis

✓

Simple REST API

Easy integration with other systems using HTTP

✓

Scalable monitoring

Can be expanded to monitor multiple sensors or locations

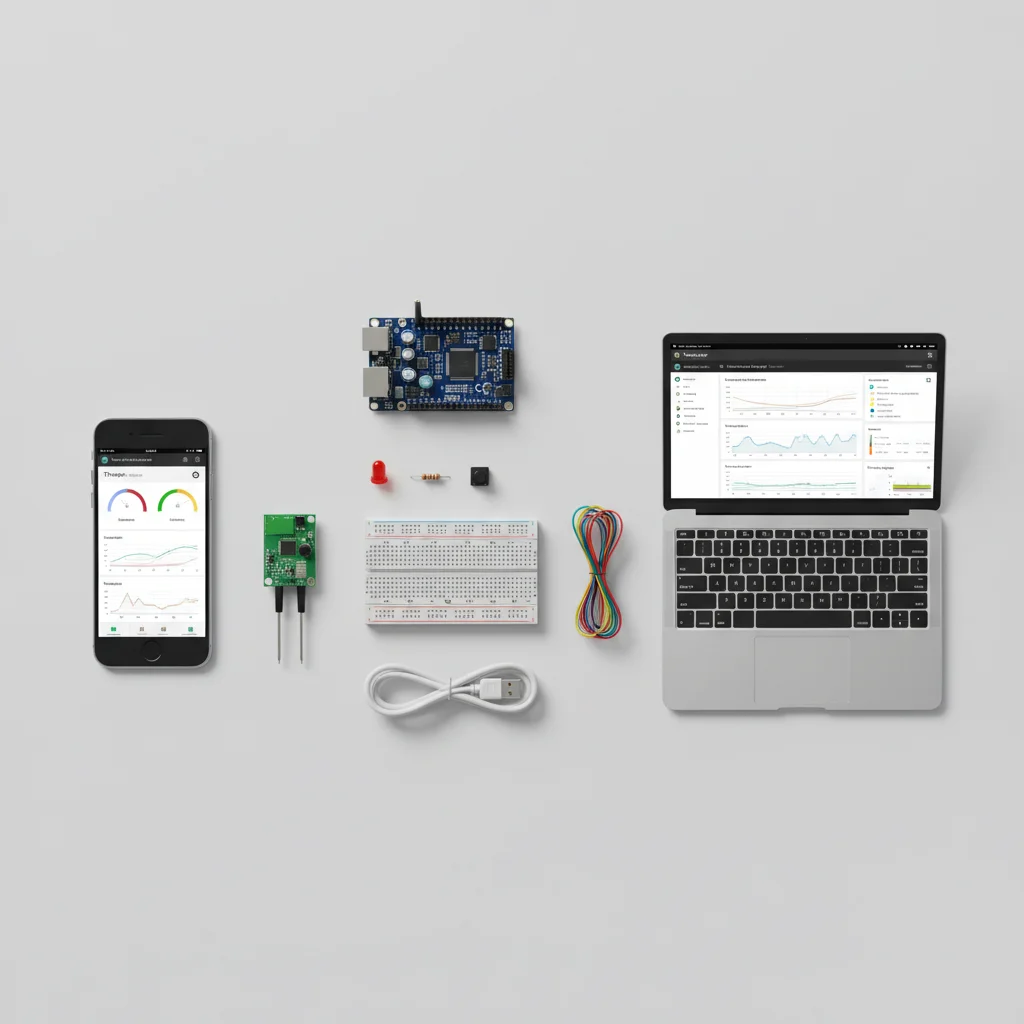

What's Included in the Kit

ESP32 ThingSpeak Data Logger - All components

Component	Part ID	Qty	Price	Description
ESP32 Development Board	-	1	₹1682.00	-
Sensor (DHT22 / LDR / LM35)	-	1	₹0.00	-
Breadboard	-	1	₹77.00	-
Jumper Wires	-	1	₹171.00	-
Wi-Fi Network	-	1	₹0.00	-

Pin Connections

MCU Pin	Connected To	Purpose	Notes
GPIO 4	DHT22 Data	Digital signal for sensor data	Example pin for DHT22 sensor
3.3V	DHT22 VCC	Power supply for sensor	DHT22 operates at 3.3V
GND	DHT22 GND	Ground connection	Common ground reference

Tools Required

Arduino IDE

USB Cable

Wi-Fi Router

Safety Precautions

Electrical

⚠Ensure proper voltage levels (3.3V for ESP32)
⚠Avoid short circuits on breadboard
⚠Use proper power supply to prevent damage

Handling

⚠Handle ESP32 with care to avoid static damage
⚠Ensure Wi-Fi credentials are secure

Operating

⚠Respect ThingSpeak update interval (15-20 seconds)
⚠Monitor data usage on free tier

Frequently Asked Questions

Q:Can multiple ESP32 devices use one ThingSpeak channel?

A: Yes, using multiple fields (up to 8 fields per channel) to differentiate data from different devices.

Q:Is ThingSpeak free?

A: Yes, ThingSpeak offers a free tier with usage limits (e.g., 3 million messages per year, 15-second update interval).

Q:Can I download my data?

A: Yes, ThingSpeak supports CSV export of historical data for offline analysis.
