ESP32 Voice Assistant (AI)
An AI-powered voice assistant using ESP32 that listens to voice commands, processes them using cloud AI, and responds with spoken output.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹3710.00
Inclusive of all taxes
Components
6 items
Difficulty
Advanced
Build Time
3 – 4 hours
Project Details
How It Works

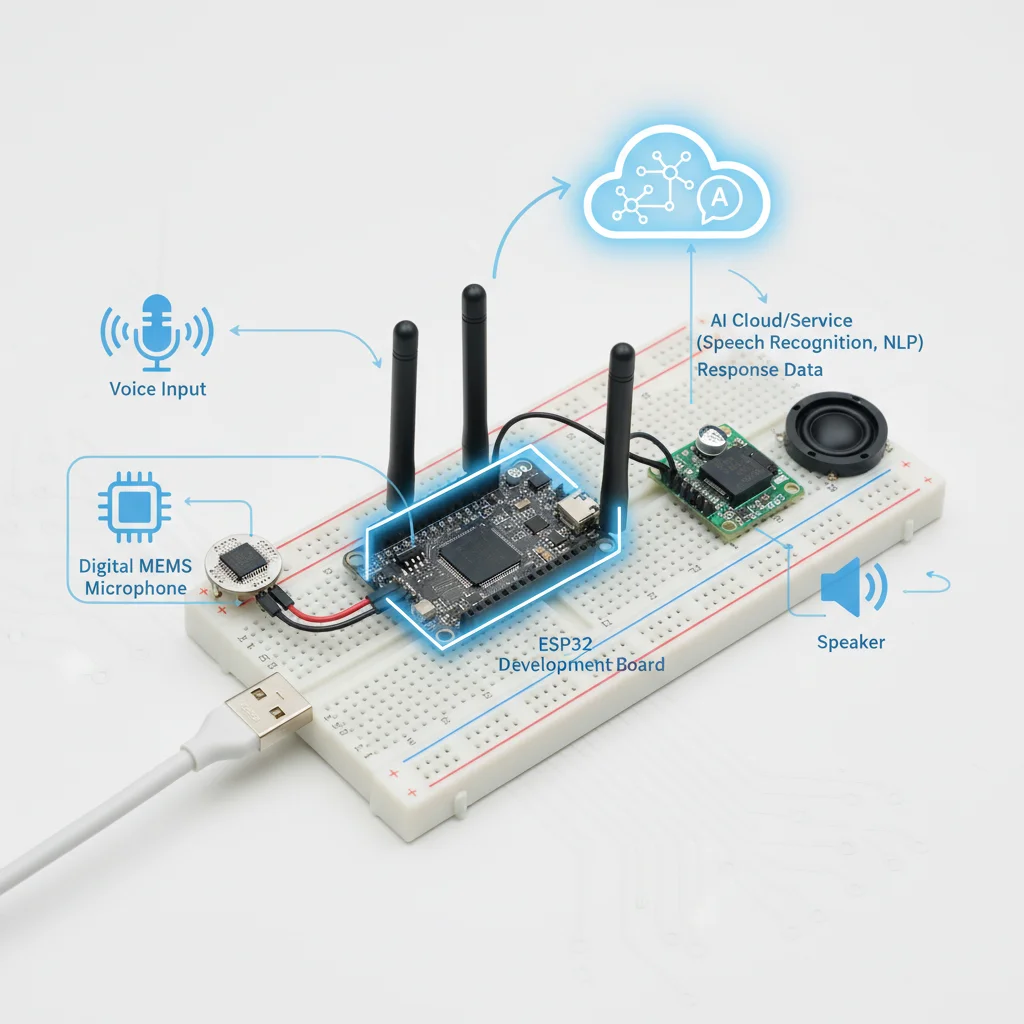

How It WorksThe system works in a sequential flow: User speaks a command → I2S microphone captures audio → ESP32 processes and sends audio to cloud STT service → Text is analyzed by AI engine → AI response text is generated → ESP32 converts text to speech using TTS API → Speaker outputs the response. The ESP32 handles all hardware interfacing while cloud services provide the AI intelligence.
Prerequisites
Basic knowledge of ESP32 programming, understanding of I2S audio protocol, familiarity with REST APIs and HTTP requests, access to cloud AI service accounts (Google, OpenAI, AWS, or Azure), and a stable Wi-Fi network connection.
What You'll Learn
What You'll LearnLearn to capture and convert voice commands to text using cloud APIs
Integrate with AI services like OpenAI or Google Cloud for natural language processing
Convert AI-generated text responses into spoken audio
Handle I2S audio input and output in real-time
Combine ESP32 IoT hardware with cloud-based AI services
Key Features
Control devices and get information using natural voice commands without physical interaction
Generate intelligent, context-aware responses using cloud AI engines
Support for English, Hindi, Marathi, Spanish, and French languages
Separate modules for STT, AI processing, and TTS for easy customization
Can be extended with additional sensors for smart home applications

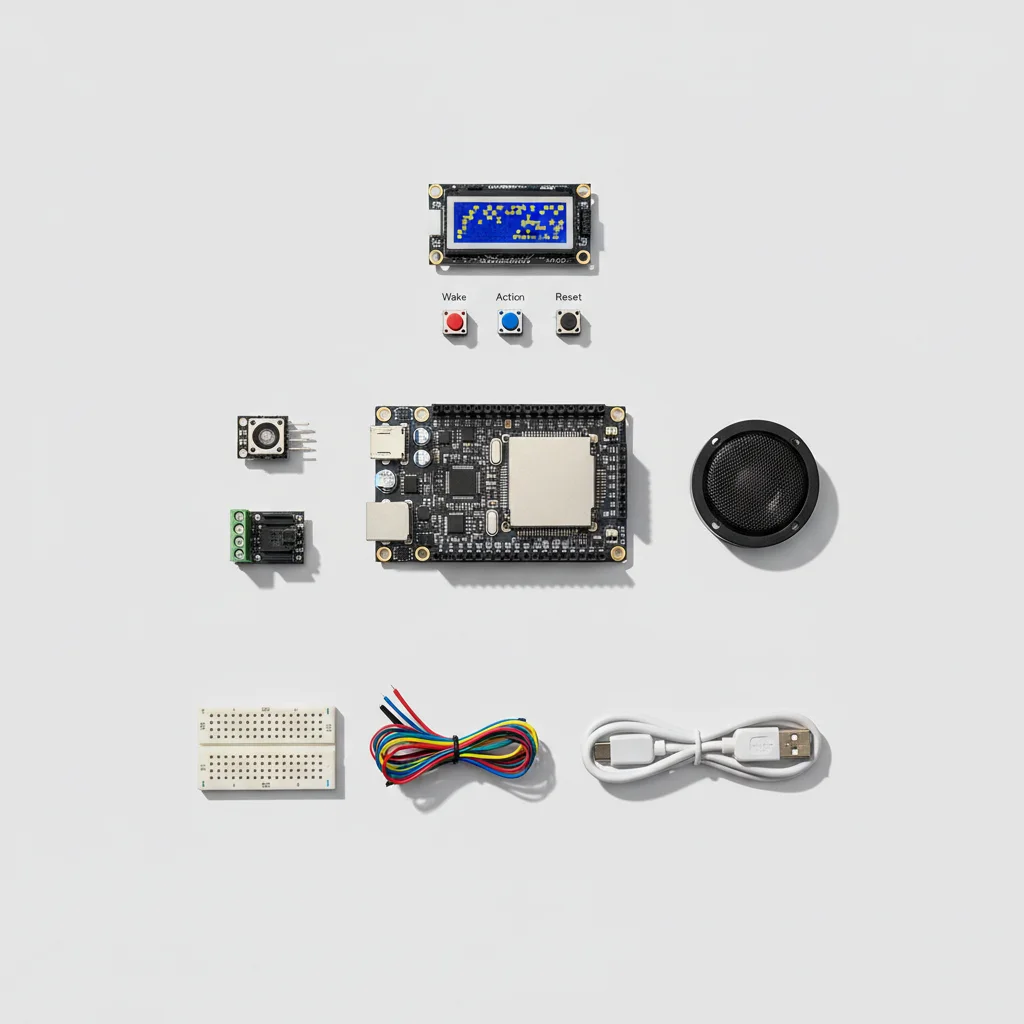

What's Included in the Kit
| Component | Qty | Price |
|---|---|---|
 | 1 | ₹0.00 |
I2S Microphone (INMP441 / SPH0645) | 1 | ₹0.00 |
I2S Audio Amplifier (MAX98357A) | 1 | ₹0.00 |
 | 1 | ₹0.00 |
 | 1 | ₹0.00 |
 | 1 | ₹171.00 |
Operating Instructions
Pin Connections
Pin Connections| MCU Pin | Connected To | Purpose | Notes |
|---|---|---|---|
| GPIO 32 | I2S Microphone (INMP441) SD | Serial data input from microphone | - |
| GPIO 33 | I2S Microphone (INMP441) WS | Word select for I2S protocol | - |
| GPIO 25 | I2S Microphone (INMP441) SCK | Serial clock for I2S protocol | - |
| 3.3V | I2S Microphone (INMP441) VCC | Power supply for microphone | - |
| GND | I2S Microphone (INMP441) GND | Ground connection | - |
| GPIO 26 | I2S Amplifier (MAX98357A) BCLK | Bit clock for I2S audio | - |
| GPIO 27 | I2S Amplifier (MAX98357A) LRC | Left/right clock for I2S audio | - |
| GPIO 14 | I2S Amplifier (MAX98357A) DIN | Data input for amplifier | - |
| 5V | I2S Amplifier (MAX98357A) VIN | Power supply for amplifier | - |
| GND | I2S Amplifier (MAX98357A) GND | Ground connection | - |
Tools Required
Tools RequiredSafety Precautions
Electrical
- ⚠Use stable power supply to avoid ESP32 damage
- ⚠Ensure proper voltage levels (3.3V for ESP32, 5V for amplifier)
- ⚠Avoid short circuits when connecting components
Handling
- ⚠Handle ESP32 and modules with care to avoid static damage
- ⚠Do not touch live connections while powered on
Operating
- ⚠Protect API keys - do not share or commit to public repositories
- ⚠Avoid excessive volume to prevent hearing damage
- ⚠Respect user privacy when handling voice data
General
- ⚠Internet dependency - project requires stable Wi-Fi connection
- ⚠Cloud latency may affect response time
- ⚠Be aware of API usage limits and costs
Frequently Asked Questions
Frequently Asked QuestionsQ:Can ESP32 run AI locally?
Q:Can Alexa/Google be replaced?
Q:Is this beginner-friendly?
