ESP32 Weather Station with Cloud Upload
An ESP32-based weather station that measures temperature, humidity, and pressure and uploads real-time data to the cloud.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹4876.00
Inclusive of all taxes
Components
7 items
Difficulty
Intermediate
Build Time
2-3 hours
Project Details
How It Works

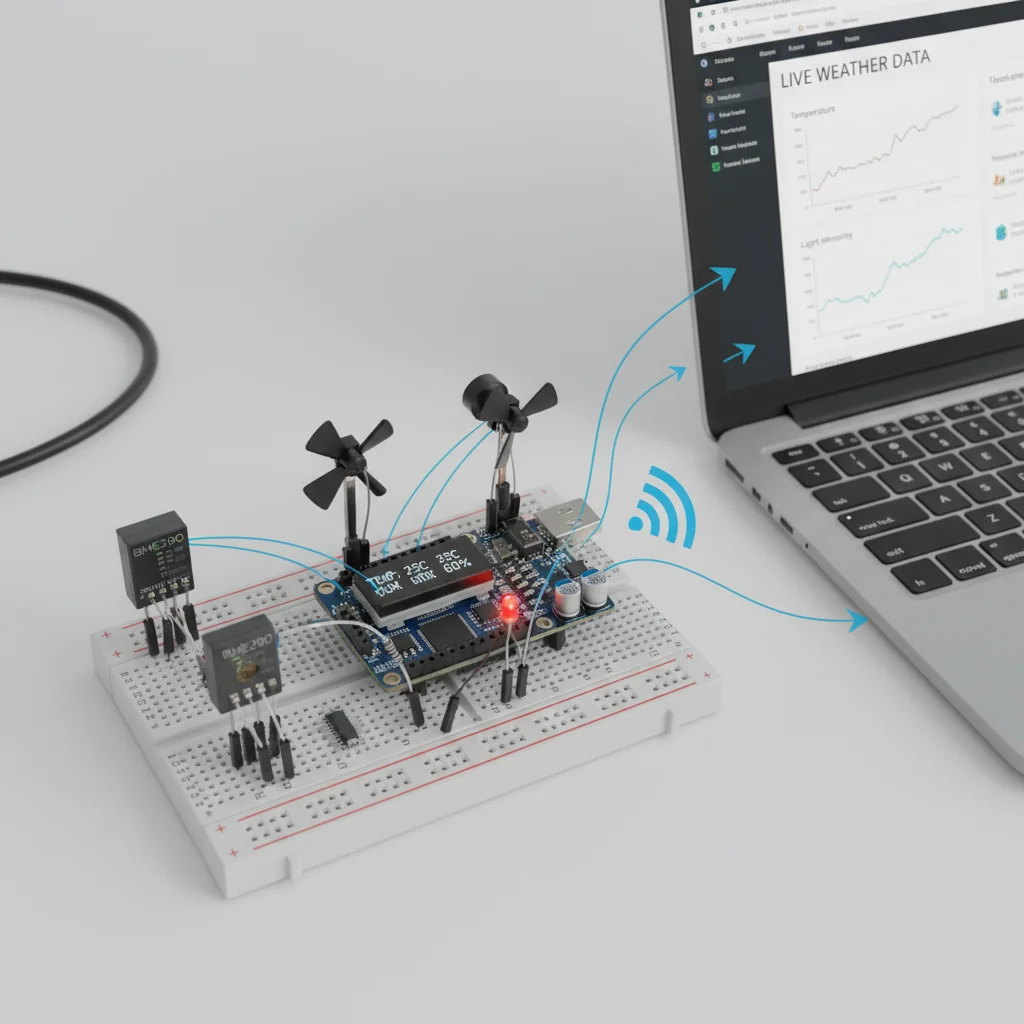

How It WorksThe ESP32 reads data from the DHT22 (temperature/humidity) and BME280 (pressure) sensors periodically. It connects to a Wi-Fi network and uploads the sensor data to a cloud platform like ThingSpeak using HTTP requests. The cloud platform stores the data and provides a dashboard for real-time monitoring and historical analysis. The system can be powered by a battery for outdoor operation and uses Deep Sleep Mode to optimize power consumption.
Prerequisites
Basic knowledge of electronics and microcontrollers, familiarity with Arduino IDE, understanding of Wi-Fi networks, and basic programming skills in C++.
What You'll Learn
What You'll LearnLearn to connect and read data from environmental sensors
Understand how to connect ESP32 to Wi-Fi networks
Learn to send sensor data to cloud platforms
Create dashboards for real-time data visualization
Understand principles of environmental data collection and analysis
Key Features
Continuously measures and displays temperature, humidity, and pressure
Uploads sensor data to cloud platforms for long-term storage
View weather data from any device with internet access
Can be expanded with additional sensors like rain and wind sensors

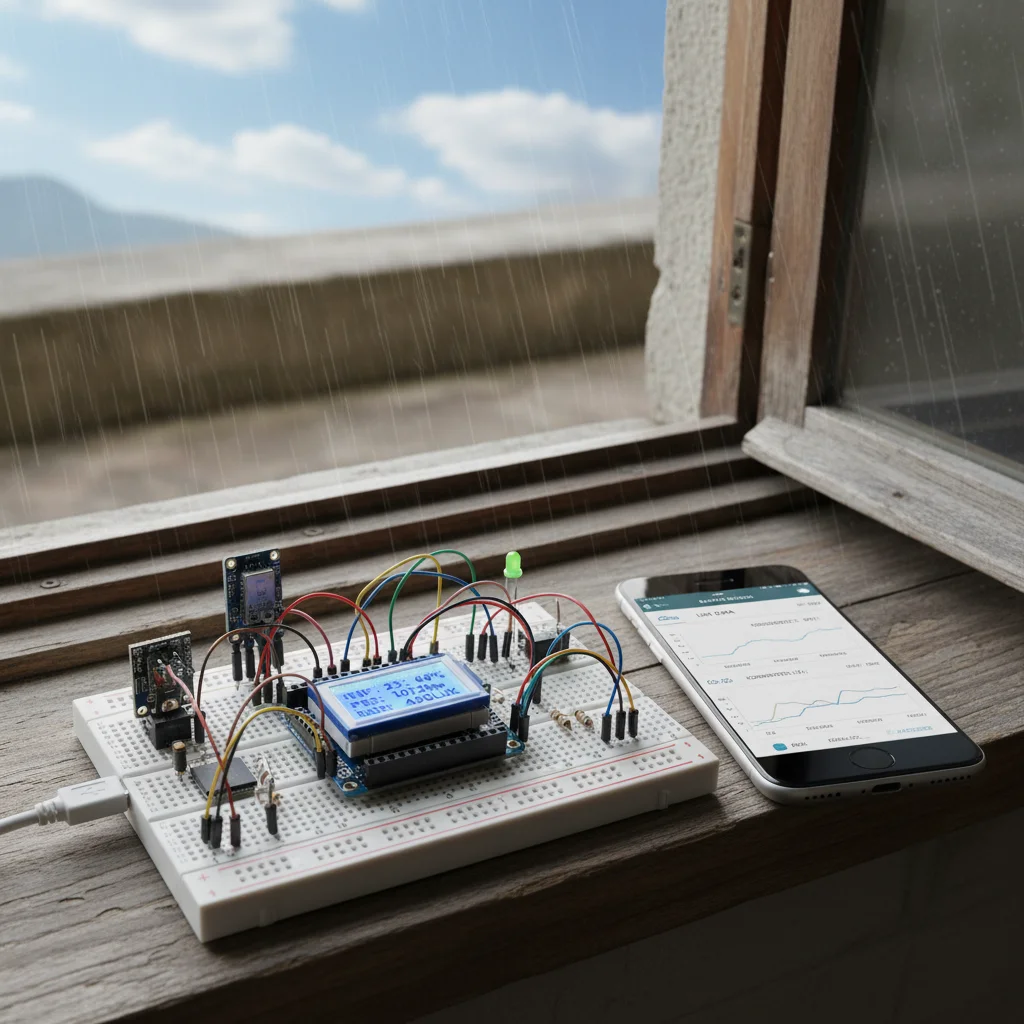

Uses Deep Sleep Mode and battery power for outdoor operation

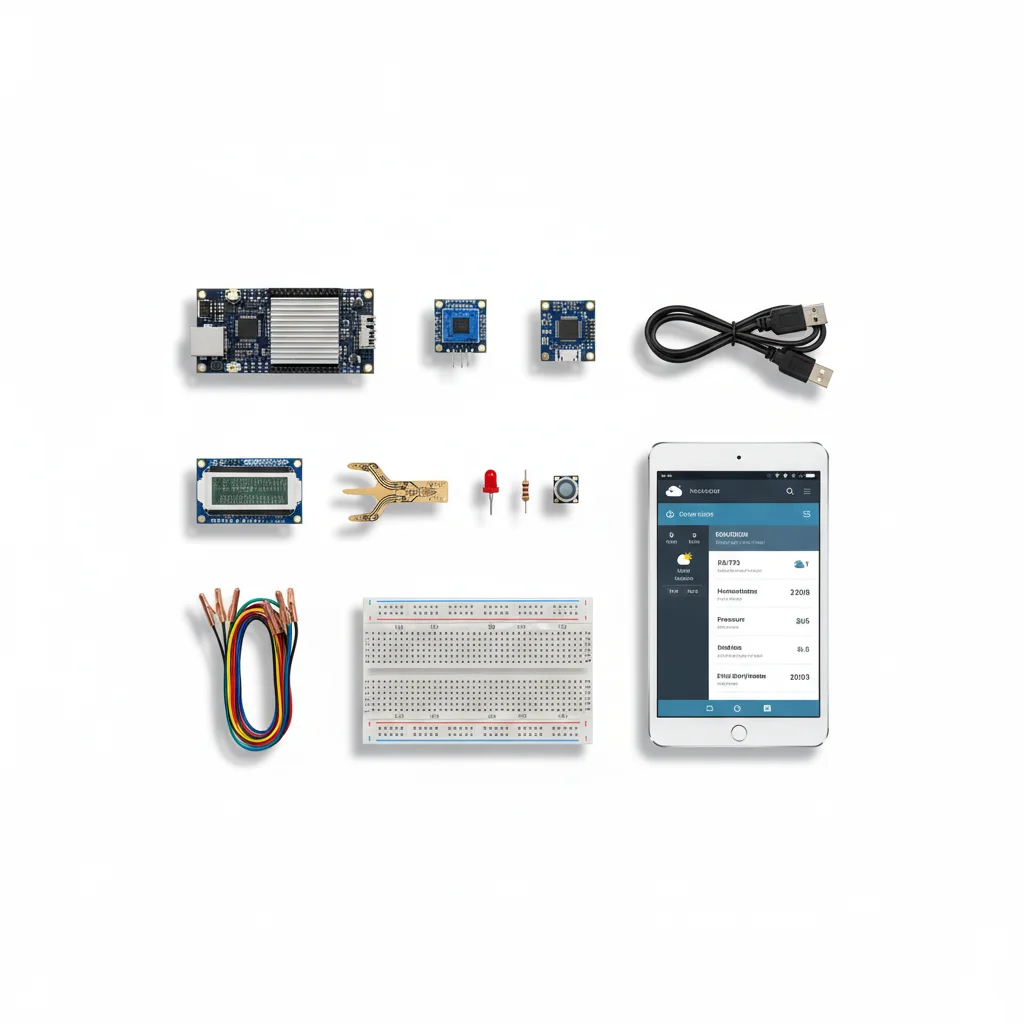

What's Included in the Kit
| Component | Qty | Price |
|---|---|---|
 | 1 | ₹1682.00 |
 | 1 | ₹395.00 |
 | 1 | ₹0.00 |
 | 1 | ₹77.00 |
 | 1 | ₹171.00 |
 | 1 | ₹2.00 |
 | 1 | ₹190.00 |
Operating Instructions

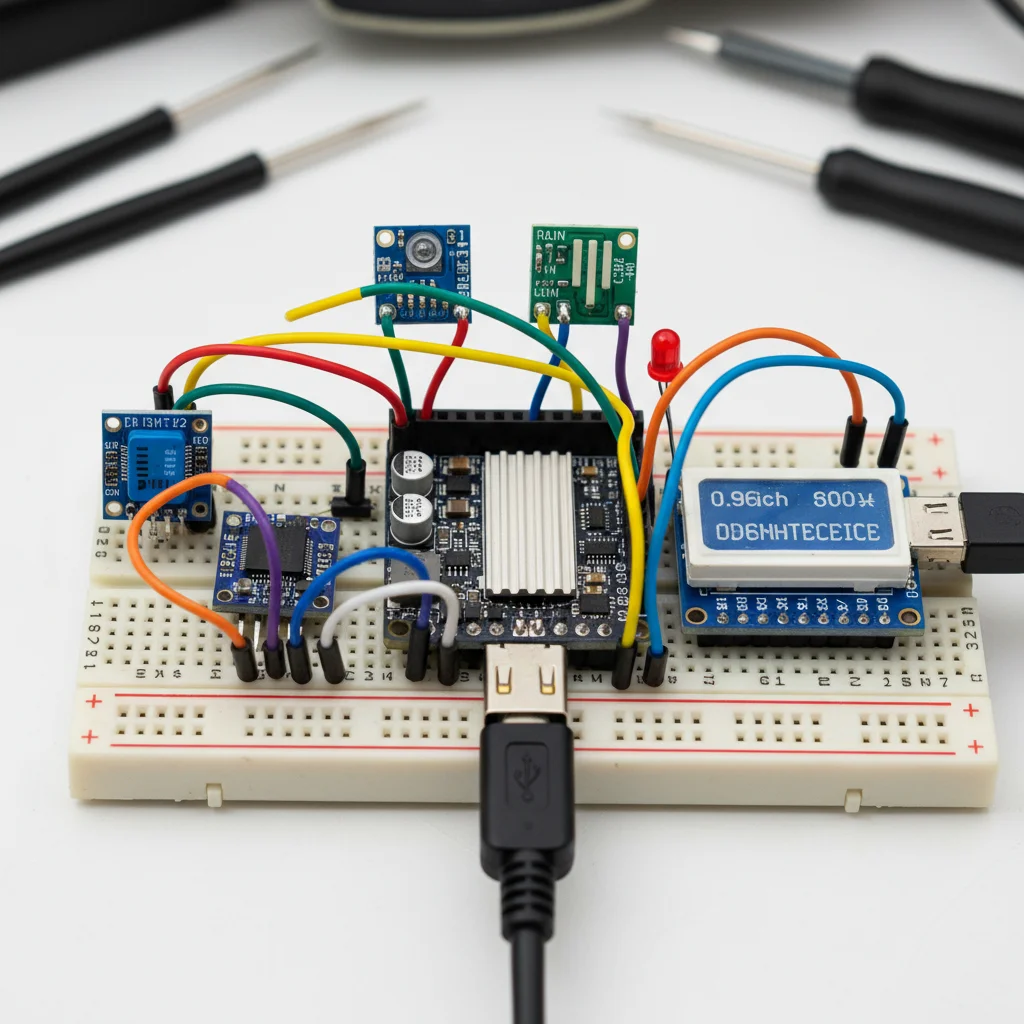

Pin Connections
Pin Connections| MCU Pin | Connected To | Purpose | Notes |
|---|---|---|---|
| 3.3V | DHT22 VCC | Power supply for DHT22 sensor | - |
| GPIO 4 | DHT22 DATA | Data line for DHT22 sensor | Requires 10kΩ pull-up resistor |
| GND | DHT22 GND | Ground connection for DHT22 sensor | - |

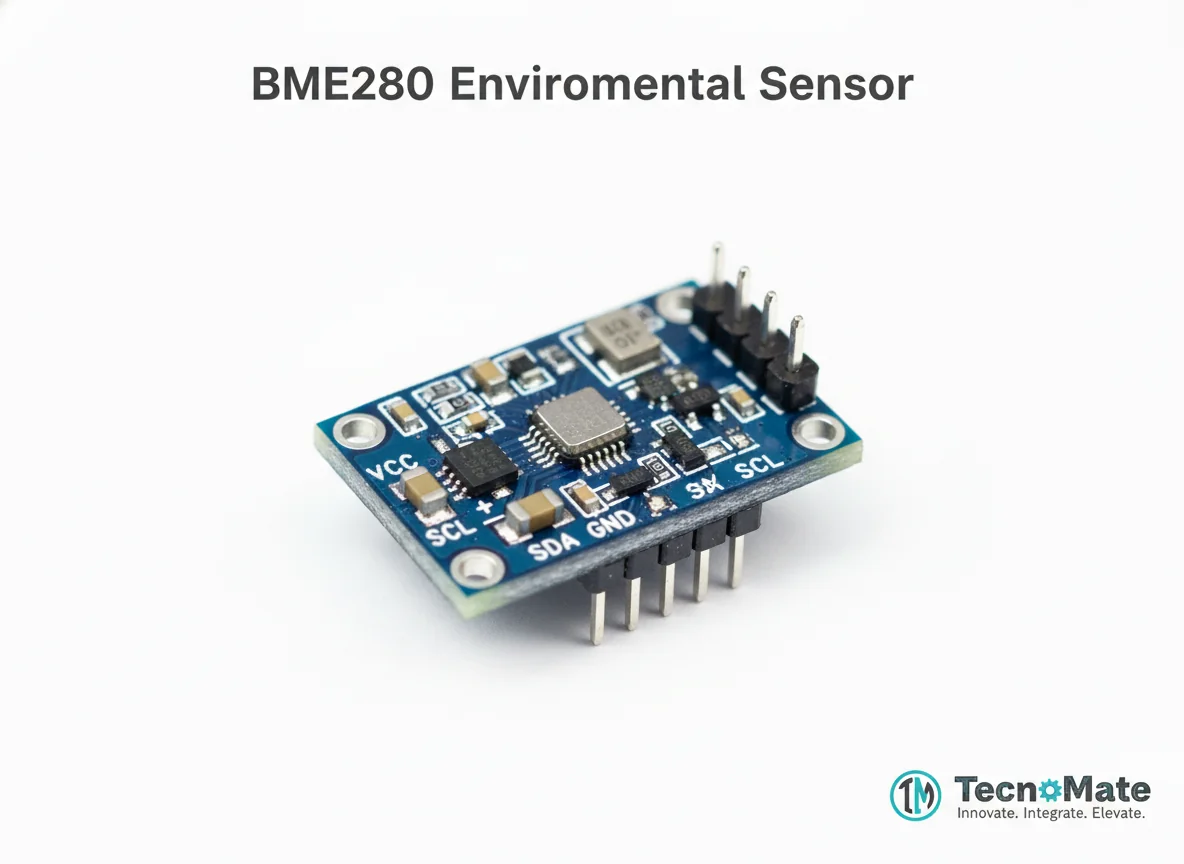

| 3.3V | BME280 VCC | Power supply for BME280 sensor | - |
| GPIO 21 | BME280 SDA | I2C data line for BME280 sensor | - |
| GPIO 22 | BME280 SCL | I2C clock line for BME280 sensor | - |
| GND | BME280 GND | Ground connection for BME280 sensor | - |
Tools Required
Tools RequiredSafety Precautions
Electrical
- ⚠Power ESP32 with regulated supply to avoid damage
- ⚠Ensure proper grounding to prevent electrical issues
Handling
- ⚠Handle sensors carefully to avoid damage
- ⚠Avoid static discharge when handling electronic components
Operating
- ⚠Use waterproof enclosure outdoors
- ⚠Avoid direct rain exposure on sensors
- ⚠Secure Wi-Fi credentials to prevent unauthorized access
Frequently Asked Questions
Frequently Asked QuestionsQ:Can I add rain and wind sensors?
Q:Does this work offline?
Q:Can I view historical data?
