PIR Motion Sensor Alarm Using Arduino
Build a PIR motion sensor alarm using Arduino that detects human movement and triggers a buzzer or alarm for security applications.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹2107.00
Inclusive of all taxes
Components
8 items
Difficulty
Beginner
Build Time
30 – 45 minutes
Project Details
How It Works

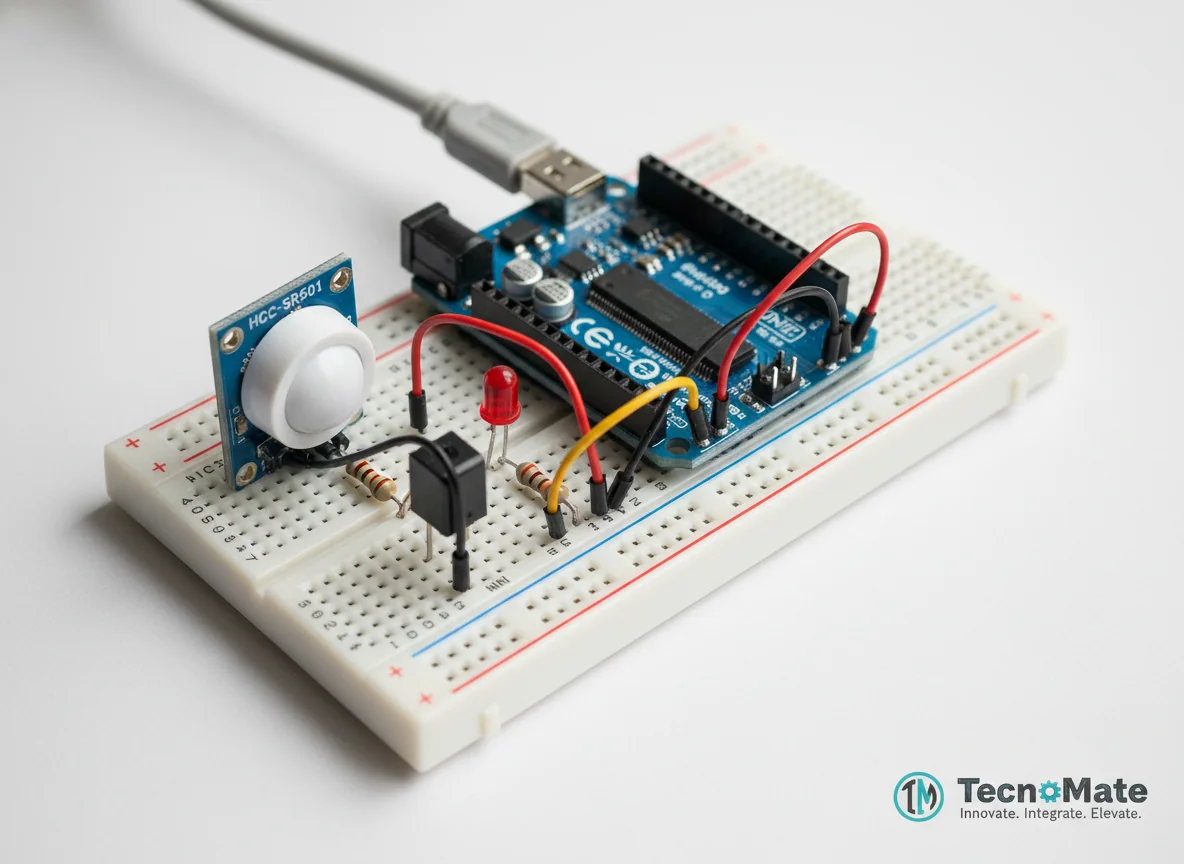

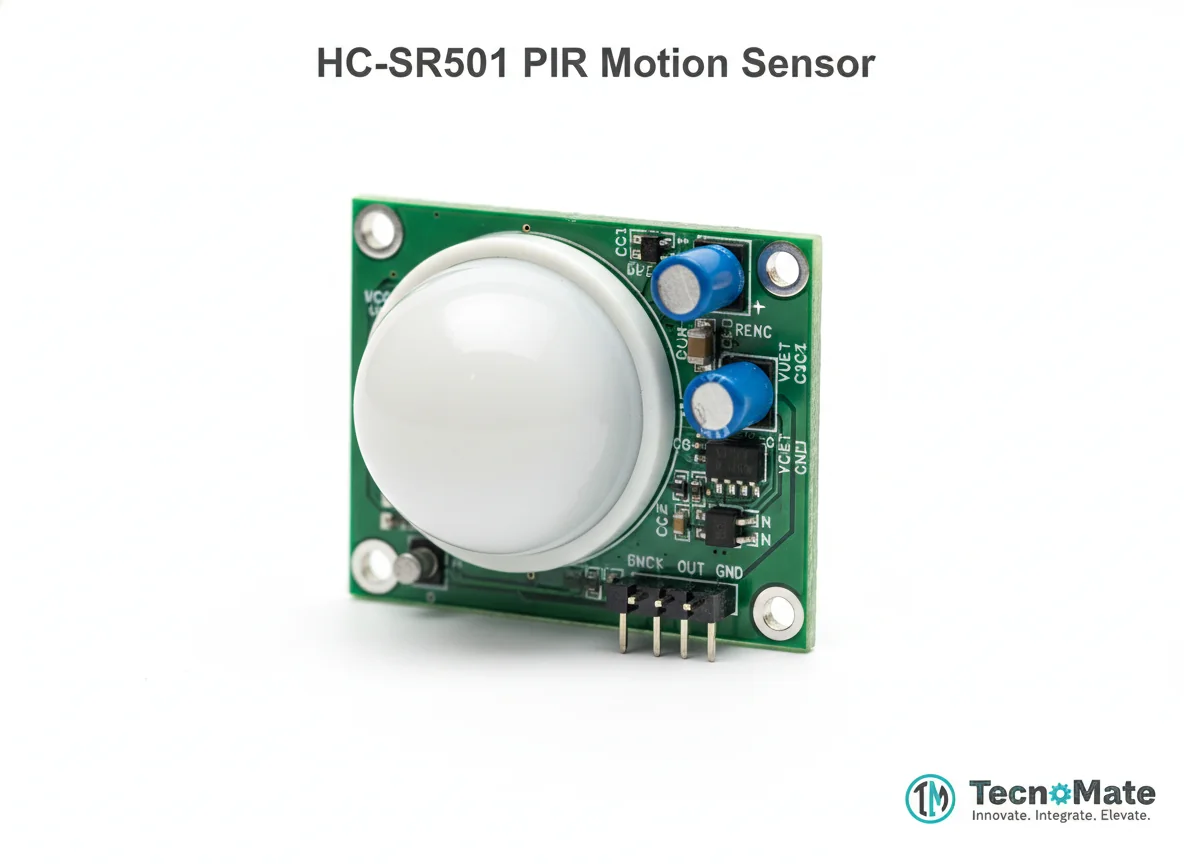

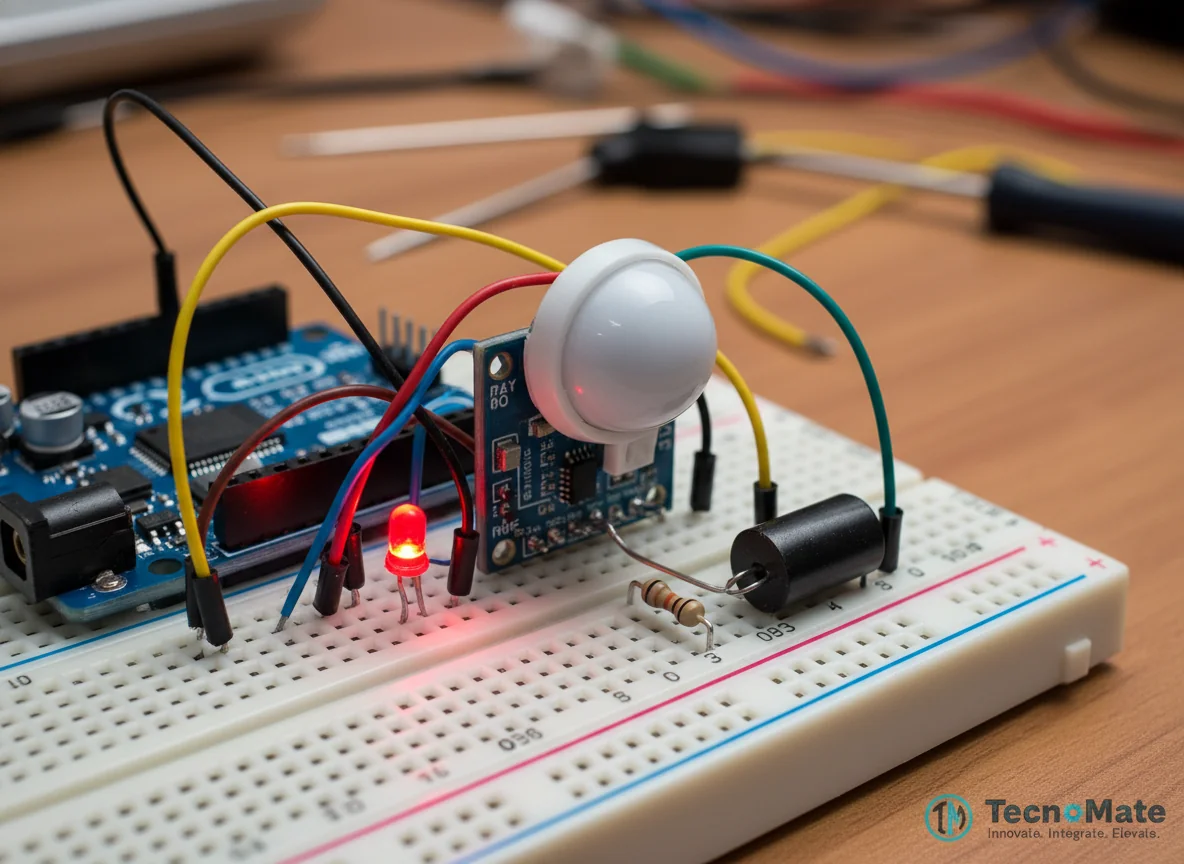

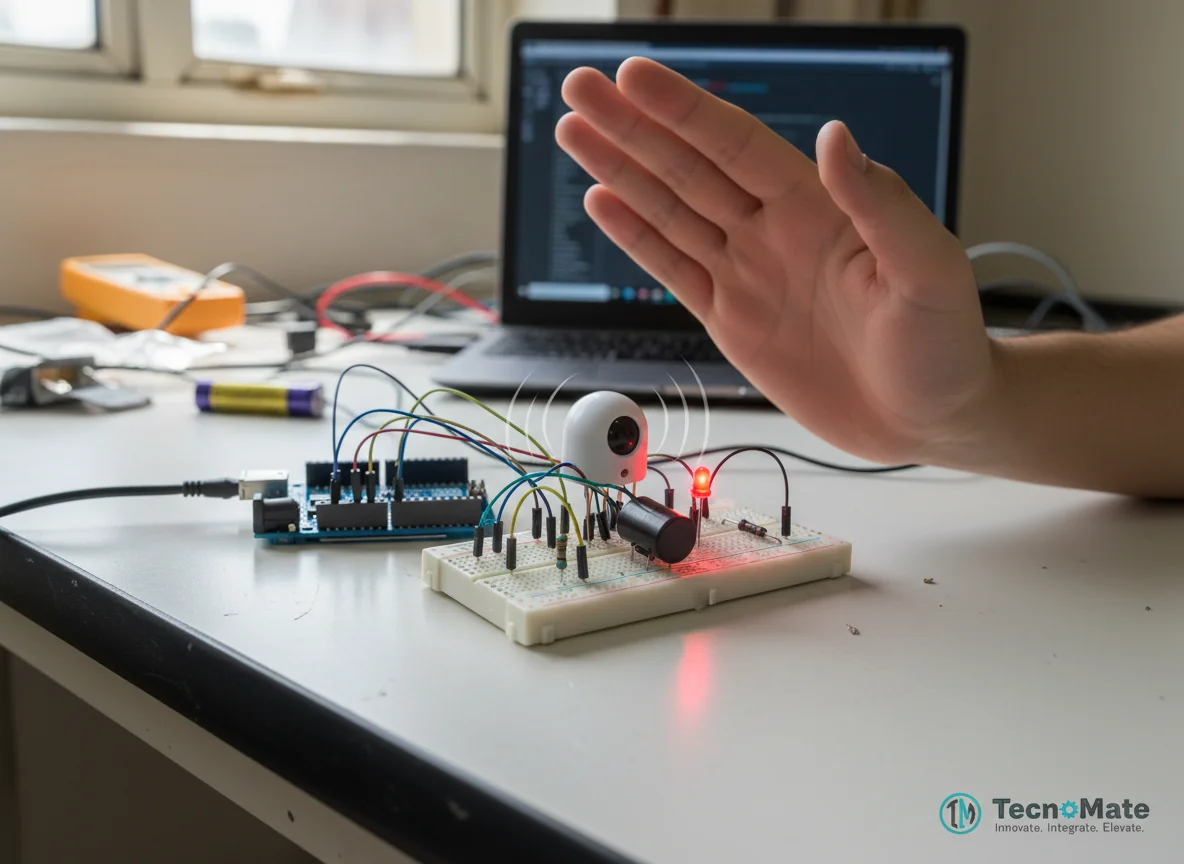

How It WorksThe PIR motion sensor continuously monitors infrared radiation in its field of view. When a warm object (like a person) moves across the sensor's detection zone, it causes a change in infrared radiation that the sensor detects. The sensor outputs a HIGH digital signal to Arduino's D2 pin. Arduino reads this signal in its loop() function. When motion is detected (HIGH signal), Arduino activates the buzzer on D8 and LED on D9, creating both audible and visual alerts. The system also reports status via Serial Monitor. After motion stops, the sensor returns to LOW state, and Arduino deactivates the alarm outputs.
Prerequisites
Basic understanding of Arduino programming and circuit connections. Familiarity with digital input/output concepts. Ability to install Arduino IDE and upload code to Arduino board. No advanced electronics knowledge required.

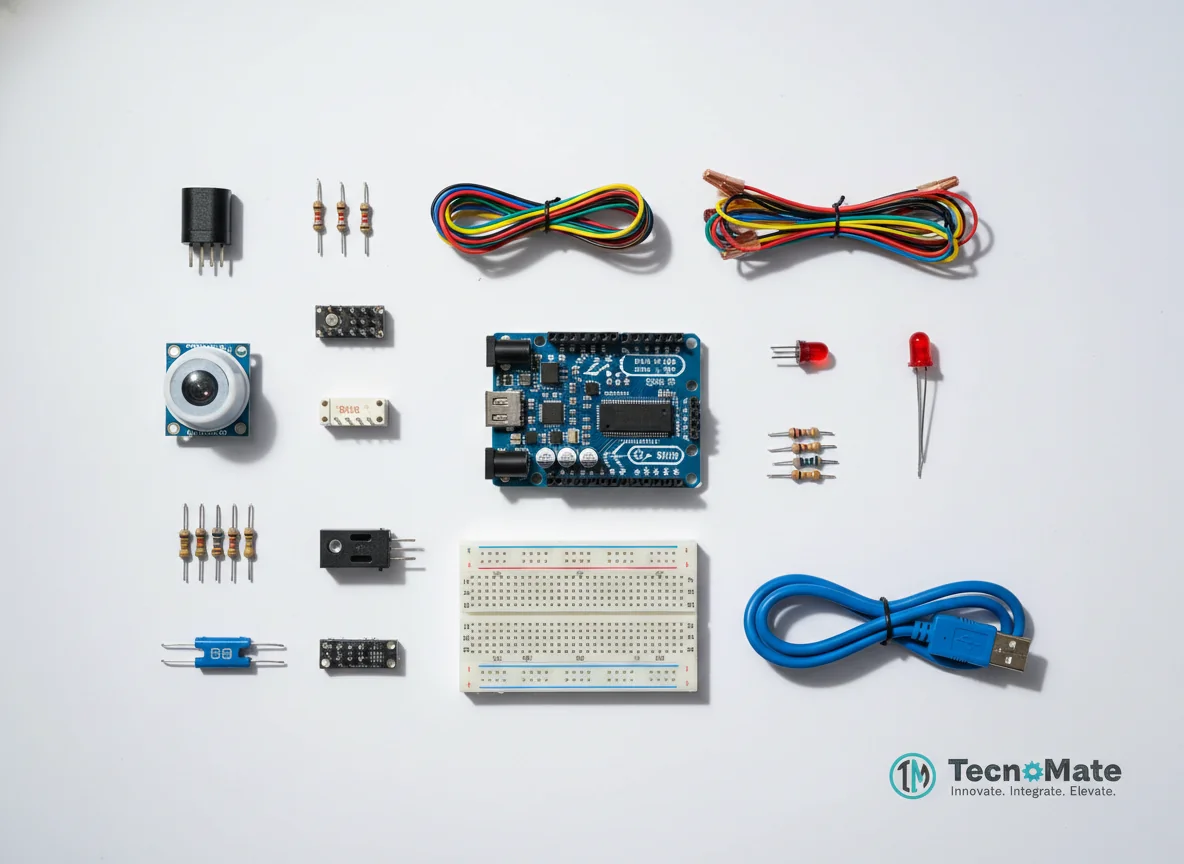

What's Included in the Kit
| Component | Qty | Price |
|---|---|---|
 | 1 | ₹767.00 |
 | 1 | ₹59.00 |
 | 1 | ₹13.00 |
 | 1 | ₹0.00 |
 | 1 | ₹5.00 |
 | 1 | ₹77.00 |
 | 1 | ₹171.00 |
 | 1 | ₹190.00 |
Operating Instructions
