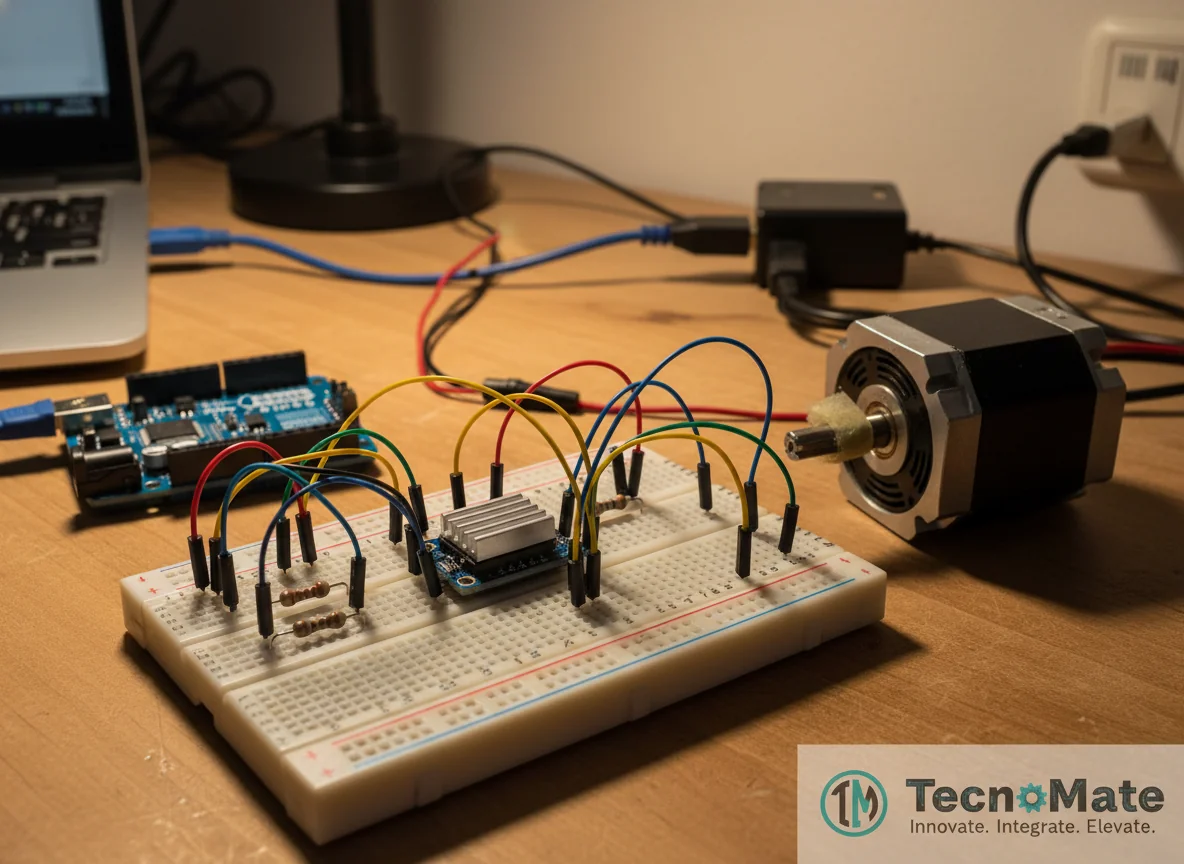

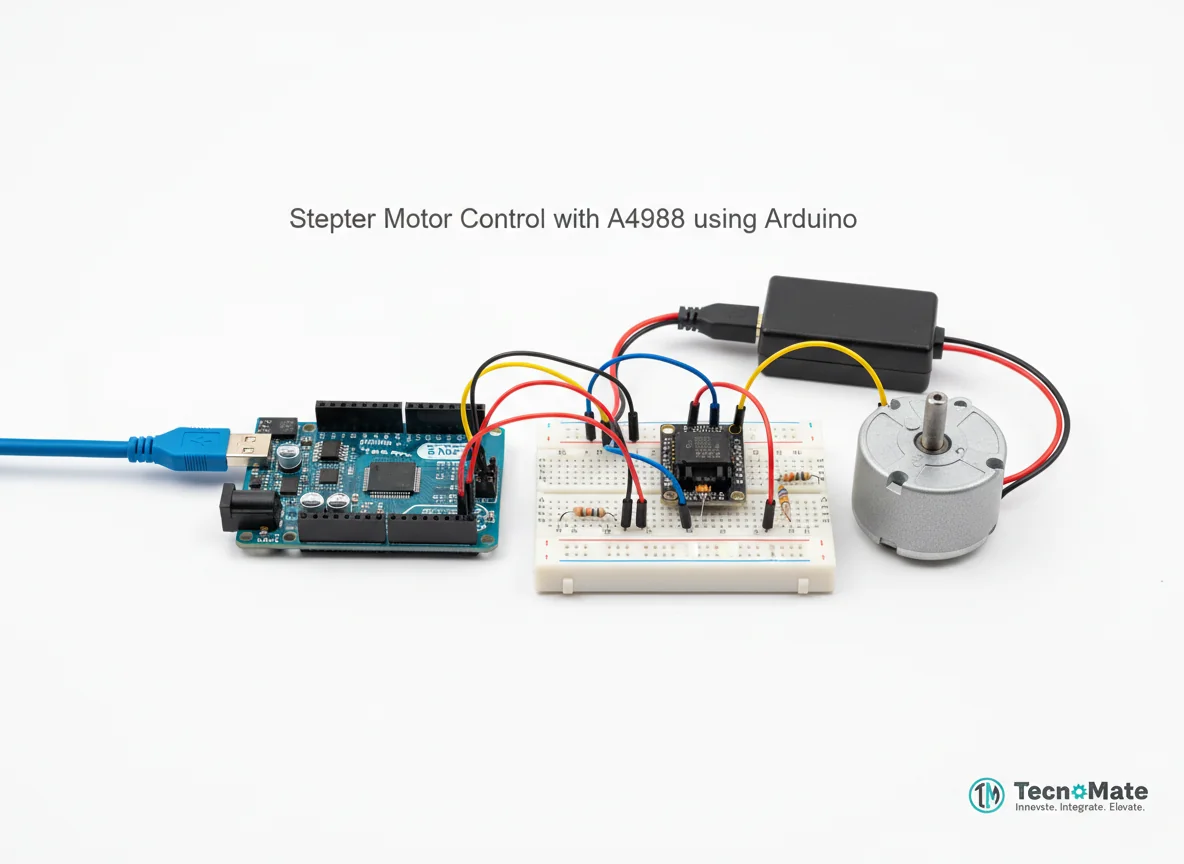

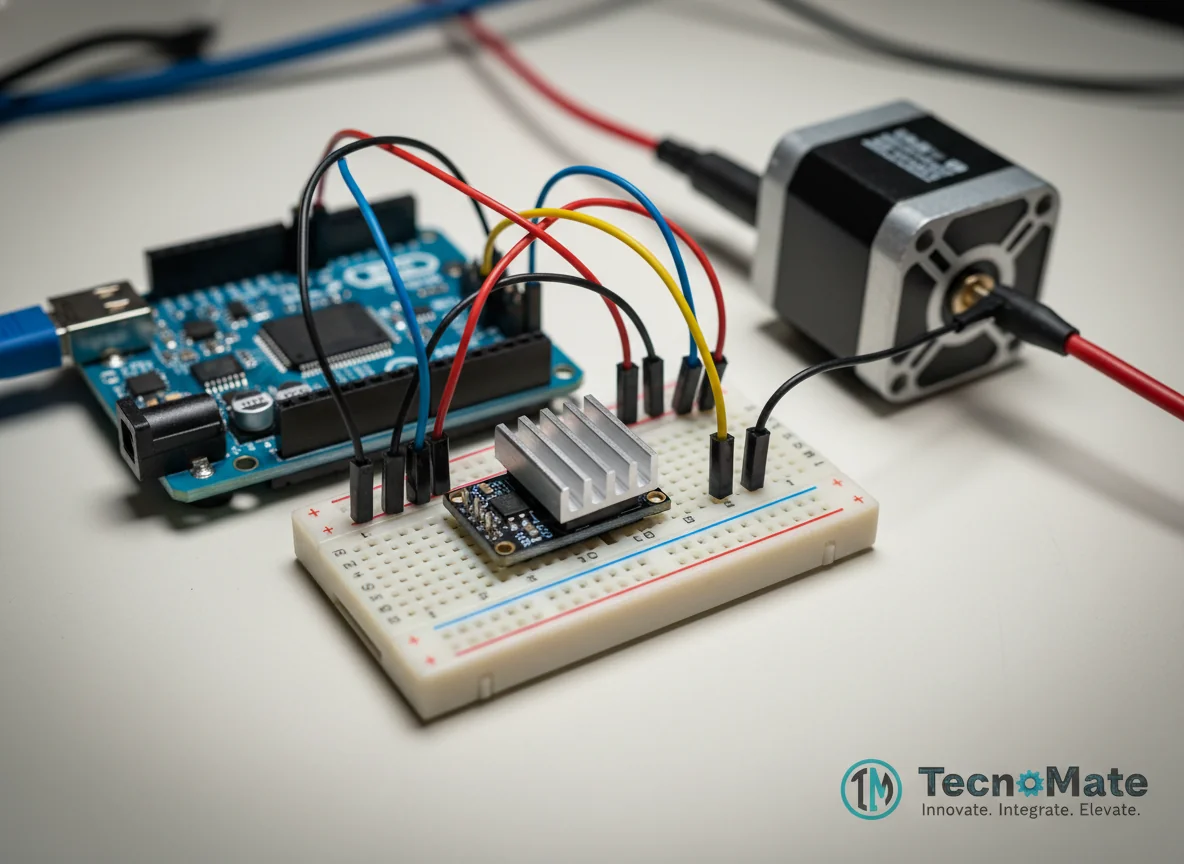

Stepper Motor Control Using A4988 Driver & Arduino
Control a stepper motor using Arduino and A4988 driver for precise speed and direction control, commonly used in CNC machines and 3D printers.
Inclusive of all taxes
- Secure payments via Razorpay
- 7-day returns on defective items
- GST invoice on every order
Free delivery on orders above ₹2,000
Delivers in 4-7 business days
Check delivery at your pincode
₹3565.00
Inclusive of all taxes
Components
8 items
Difficulty
Beginner
Build Time
45 minutes – 1 hour
Project Details
How It Works
How It WorksThe project works by using an Arduino to send STEP and DIR signals to the A4988 driver. The A4988 translates these signals into precise current pulses to the stepper motor coils, controlling rotation in discrete steps. The Arduino code generates pulses on the STEP pin (with delays to control speed) and sets the DIR pin high or low for direction. The A4988 handles current regulation, microstepping, and protects the motor from overcurrent. A 100µF capacitor across VMOT and GND provides stability for the motor power supply.
Prerequisites
Basic understanding of Arduino programming (digital output, loops, delays). Familiarity with basic electronics concepts (voltage, current, ground). Ability to read simple circuit diagrams. No prior experience with stepper motors required.

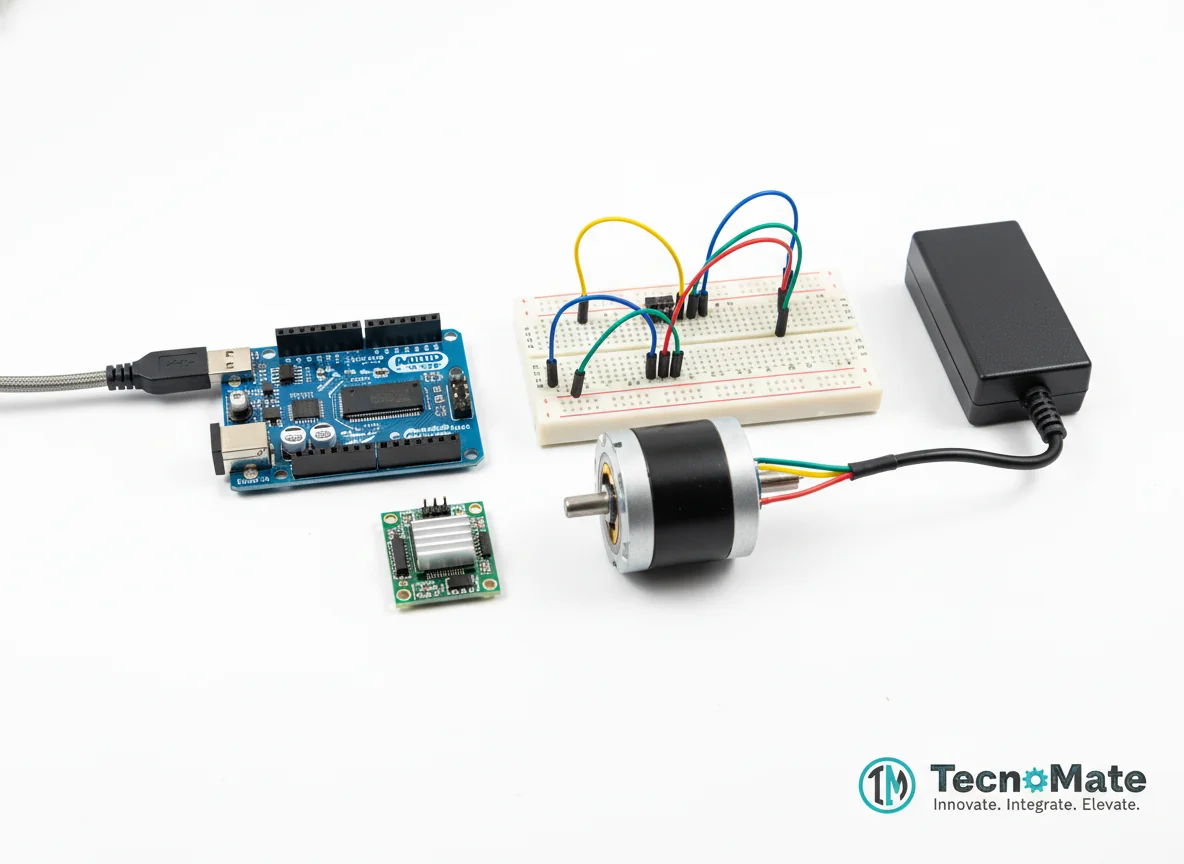

What's Included in the Kit
| Component | Qty | Price |
|---|---|---|
 | 1 | ₹767.00 |
 | 1 | ₹0.00 |
 | 1 | ₹1299.00 |
 | 1 | ₹0.00 |
 | 1 | ₹0.00 |
 | 1 | ₹77.00 |
 | 1 | ₹171.00 |
 | 1 | ₹190.00 |
Operating Instructions
